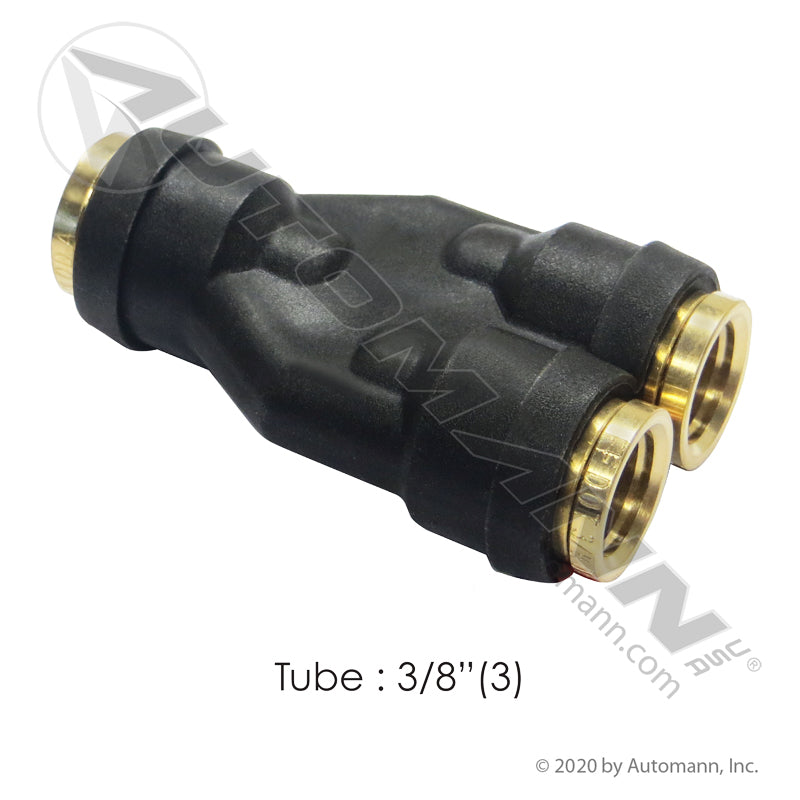

PLC Y Union - DOT 3/8" x 3/8" x 3/8" Push-to-Connect Air Brake - Fairview CPC1464Y-6 177.12C636
Regular price
$9.57
Couldn't load pickup availability
- Ships same dayOn in-stock orders
- 30-day money-backShop with confidence
- Secure checkoutEncrypted payment
We accept
Fitment
Fits these trucks
Universal - air brake systemsPush-to-connect terminations on DOT nylon air-brake tubing runsSplits a 3/8 in tubing run into two 3/8 in legs
Always confirm your year, make & model before ordering.
Part numbers
OEM & interchange numbers
15 cross-refsFairview CPC1464Y-6 Fairview CPC1464Y-66 Fairview CPC1464Y6 Fairview CPC1464Y66 Freightliner 23-14401-001 Freightliner 2314401001 Parker 362PTC-6 Parker 362PTC6 Phillips 12-96066 Phillips 1296066 Tectran QL1363666 Tramec S764YPMT-6 Tramec S764YPMT6 Velvac 016290 177.12C63666
Direct 1-to-1 replacement for every number above. Tap any number to copy.
Overview
Branch a 3/8 in air line without threading anything with this PLC Y Union distributed by FleetPro Parts & Tires. All three legs are push-to-connect and all three take 3/8 in DOT nylon tubing, so a supply run can be split to feed a second circuit using nothing but square-cut tube ends. The alternative โ a threaded tee with pipe nipples and sealant on every joint โ adds three more places to develop the slow leak that drains the tanks overnight and has a driver chasing a hiss before dawn. We stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, diesel repair shops, and owner-operators nationwide.
Three Legs, No Threads: The 3/8 in PLC Y Union Advantage
This Y union is a composite body with a brass collet and it fits 3/8in x 3/8in x 3/8in tube. Because it is a Y rather than a square tee, the branch leaves the body on an angle, which keeps the split lines running with the existing routing instead of forcing a hard bend at the fitting. That is the difference between a clean loom along the frame rail and a pair of stressed elbows that chafe on the first bracket they touch.
Assembly is the same on every leg: cut the tubing square, push it fully home, and tug-test each one before airing the system up. At FleetPro Parts & Tires, this Y union is a direct replacement for highly searched industry numbers including Fairview CPC1464Y-6, Freightliner 23-14401-001, Parker 362PTC-6 and Phillips 12-96066. It also replaces the older Automann number 177.12C63666 โ order this one if that is the number on your list.
Vehicle Fitment & Compatibility
This DOT push-to-connect Y union uses a universal design intended for the following commercial applications:
- Make/Model: Universal - air brake systems on Class 8 tractors and commercial trailers
- Tube Connection: 3/8 in x 3/8 in x 3/8 in push-to-connect (PLC)
- Use: Push-to-connect terminations on DOT nylon air-brake tubing runs
- Component Group: Air System Manifolds & Valves / Air Line Fittings
Direct Replacement & Cross-Reference Numbers:
This Automann Y union serves as a direct replacement for the following part numbers:
- Fairview Interchange: CPC1464Y-6, CPC1464Y-66, CPC1464Y6, CPC1464Y66
- Freightliner Interchange: 23-14401-001, 2314401001
- Parker Interchange: 362PTC-6, 362PTC6
- Phillips Interchange: 12-96066, 1296066
- Tramec Interchange: S764YPMT-6, S764YPMT6
- Other Interchange: Tectran QL1363666, Velvac 016290
- Supersedes: 177.12C63666
- Automann Distributor #: 177.12C636
Technical Specifications
- Component Type: PLC Y Union, DOT Air Brake
- Body: Composite Body with Brass Collet
- Tube Size: 3/8 in x 3/8 in x 3/8 in
- Replaces: 177.12C63666
- UPC: 889626780158
- Product Level: Fleet Standard Aftermarket
- Brand: Automann (Distributed by FleetPro Parts & Tires)
Key features
- Branch Without Threads: All three 3/8 in legs are push-to-connect, so splitting a run needs no pipe nipples, no tee and no thread sealant.
- Y Geometry Keeps The Routing: The branch leaves on an angle rather than square, so the split lines follow the existing loom instead of kinking at the fitting.
- Brass Collet Grip: The brass collet holds 3/8 in DOT nylon tubing on every leg inside a light composite body.
- Wide Interchange Coverage: Replaces Fairview CPC1464Y-6, Freightliner 23-14401-001, Parker 362PTC-6 and Phillips 12-96066.
- Supersedes The Old Number: Takes the place of the earlier Automann 177.12C63666 Y union.
Specifications
Component Type
PLC Y Union, DOT Air Brake
Body
Composite body with brass collet
Tube Size
3/8 in x 3/8 in x 3/8 in
Replaces
177.12C63666
UPC
889626780158
Product Level
Fleet Standard Aftermarket
Questions
Will this fit my truck?
This part fits Universal - air brake systems, Push-to-connect terminations on DOT nylon air-brake tubing runs, Splits a 3/8 in tubing run into two 3/8 in legs. Always confirm your year, make and model before ordering.
What part numbers does it replace?
Yes. It is a direct replacement that interchanges with Fairview CPC1464Y-6, Fairview CPC1464Y-66, Fairview CPC1464Y6, Fairview CPC1464Y66, Freightliner 23-14401-001, Freightliner 2314401001, Parker 362PTC-6, Parker 362PTC6, Phillips 12-96066, Phillips 1296066, Tectran QL1363666, Tramec S764YPMT-6, Tramec S764YPMT6, Velvac 016290, 177.12C63666.
How fast does it ship?
In-stock orders placed before 12 PM Central on business days ship the same day from our Hanover Park, IL warehouse, and typically arrive in 2 to 5 business days anywhere in the USA.
What's your return policy?
Unused items in original packaging can be returned within 30 days, backed by our 30-day money-back guarantee. If we ship the wrong part, we cover the return label and send the correct one.
