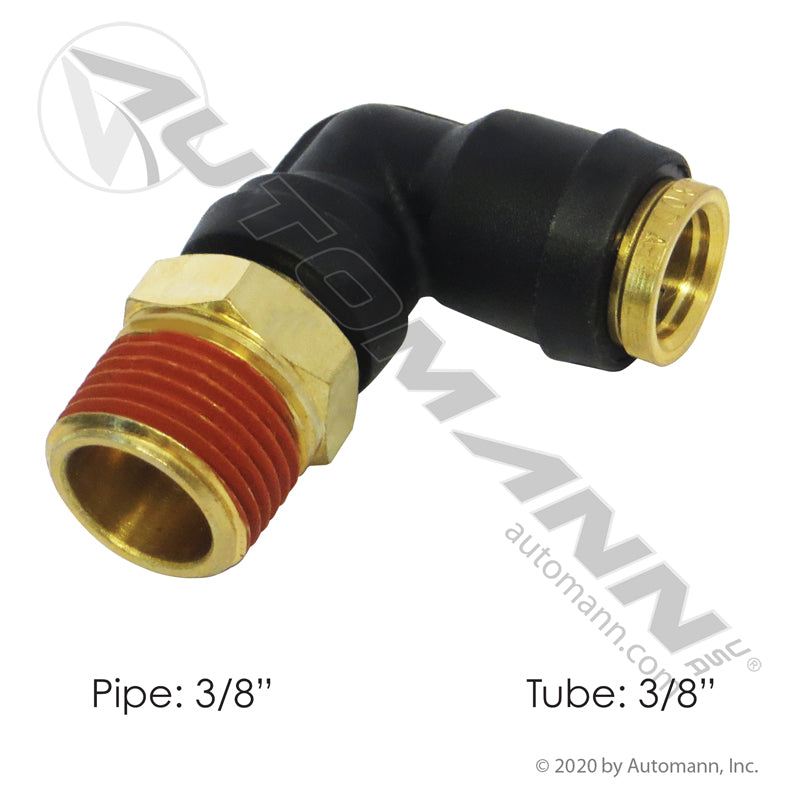

Push-to-Connect Swivel Male Elbow - DOT 3/8" Tube x 3/8" NPT Air Brake Fitting - 369PTC66 QL13696C 177.12C696C

Bring a nylon air line into a threaded port the easy way with this DOT Push-to-Connect (PLC) Swivel Male Elbow distributed by FleetPro Parts & Tires. It takes 3/8 in DOT nylon air-brake tubing on the push-to-connect side and threads into a 3/8 in NPT pipe port on the other, and because the elbow swivels you can aim the tube run where the chassis actually has room instead of where the port happens to point. A fitting cranked past its seal just to clear a frame rail is a fitting that weeps: the compressor cycles all shift, the low-air warning keeps the driver guessing, and a leaking brake circuit is an instant out-of-service at the scale. We stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, diesel repair shops, and owner-operators nationwide.

Aim the Line, Not the Port: The Swivel Male Elbow Advantage

This Automann fitting pairs a composite body with a brass collet. The composite housing shrugs off the road salt, spray and moisture that pit all-metal fittings, while the brass collet grips the nylon tube where it counts. The swivel is the part that saves the job: you tighten the male thread to its proper seal first, then rotate the elbow to line up with the tube run — no more choosing between a sealed thread and a sensible hose route. Assembly on the tube side is push-to-connect, so there is no flaring, no compression sleeve to tighten and no special tooling on the shoulder.

At FleetPro Parts & Tires, we know a brake job is only right when every joint holds. This DOT push-to-connect elbow is a direct replacement for highly searched industry numbers including 369PTC66, QL13696C, S769PMT66 and 016266. It ships new, built to Automann's Fleet Standard grade, and is backed by our 1-Year FleetPro Warranty.

Vehicle Fitment & Compatibility

This DOT push-to-connect fitting uses a universal design intended for the following commercial applications:

• Make/Model: Universal — air brake systems on Class 8 tractors and commercial trailers
• System: Push-to-connect terminations on DOT nylon air-brake tubing runs
• Tube Size: 3/8 in nylon air-brake tubing
• Port Thread: 3/8 in NPT male, swivel
• Component Group: Air Brake & Wheel / Air System Manifolds & Valves

Direct Replacement & Cross-Reference Numbers:

This Automann air brake fitting serves as a direct replacement for the following part numbers:

• Additional Interchange: 369PTC66, QL13696C, 016266, S769PMT66
• Automann Distributor #: 177.12C696C

Technical Specifications

• Component Type: Push-to-Connect (PLC) Swivel Male Elbow, DOT
• Tube End: 3/8 in
• Pipe Thread: 3/8 in NPT
• Body: Composite with Brass Collet
• Tubing: DOT nylon air-brake tubing
• Condition: New
• Warranty: 1-Year FleetPro Warranty
• Product Level: Fleet Standard Aftermarket
• Brand: Automann (Distributed by FleetPro Parts & Tires)
