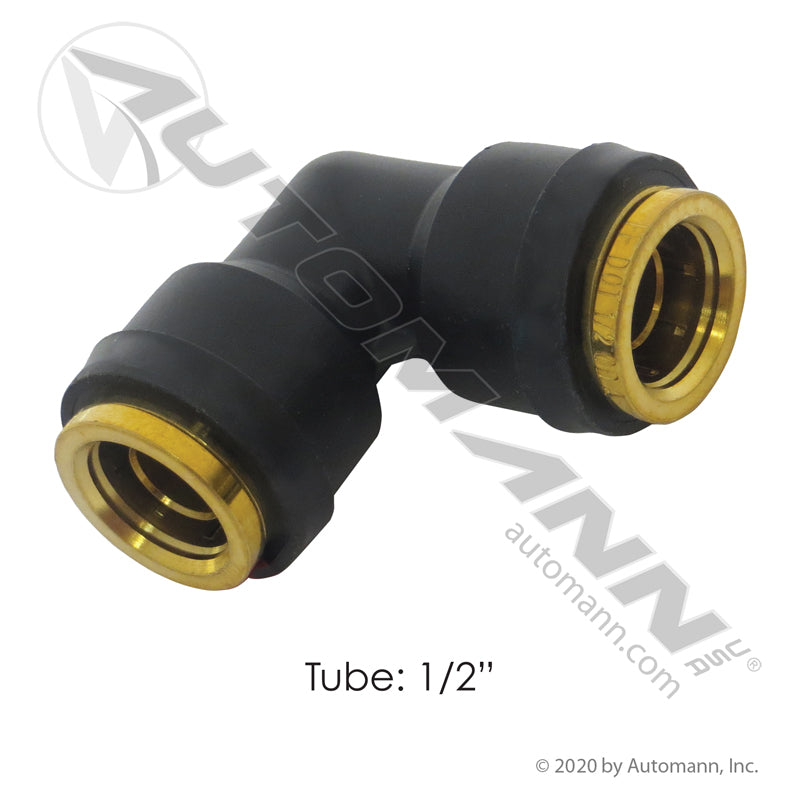

Push-to-Connect Union Elbow - DOT 1/2" 90 Degree Air Brake Fitting - Parker 365PTC-8 Sloan S765PMT-8 177.12C658

Turn the big line cleanly with this DOT Push-to-Connect (PLC) Union Elbow distributed by FleetPro Parts & Tires. It joins two 1/2 in air brake tube ends at a 90 degree bend — the size used where air volume matters, and the size that punishes you hardest if you try to bend it around a bracket by hand. A kinked, chafed or weeping air line bleeds pressure all shift long: the compressor cycles nonstop, the low-air buzzer nags the driver, and a leaking brake circuit is an instant out-of-service at the scale. We stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, diesel repair shops, and owner-operators nationwide.

Full-Flow Corners: The 1/2 in DOT Union Elbow Advantage

This Automann fitting pairs a composite body with a brass collet. The composite housing resists the road salt, spray and moisture that pit all-metal fittings, while the brass collet grips the tube where it counts. Assembly is push-to-connect: push the tube home, the collet locks it, and there is no flaring, no compression sleeve to tighten and no torque wrench needed under the truck. Both ends take the same 1/2 in tube, so the larger line keeps its size straight through the corner.

The elbow is built to the FMVSS 571.106 / DOT requirements that govern brake circuits, which is what a roadside inspection is looking for. At FleetPro Parts & Tires, we know a brake job is only right when every joint holds. This union elbow is a direct replacement for highly searched industry numbers including Parker 365PTC-8, Sloan S765PMT-8, Tramec KV2L13-00, Tectran QL1365-8 and Velvac 016287, and it is backed by our 1-Year FleetPro Warranty.

Vehicle Fitment & Compatibility

This DOT air brake fitting uses a universal design intended for the following commercial applications:

• Make/Model: Universal — Class 8 tractors and commercial trailers
• System: Air brake plumbing on tractors and trailers
• Tube Size: 1/2 in on both ends
• Angle: 90 degree
• Compliance: FMVSS 571.106 / DOT brake circuit requirements
• Component Group: Air Brake & Wheel / Air System Manifolds & Valves

Direct Replacement & Cross-Reference Numbers:

This Automann air brake fitting serves as a direct replacement for the following part numbers:

• Parker Interchange: 365PTC-8, 365PTC8
• Sloan Interchange: S765PMT-8, S765PMT8
• Tramec Interchange: KV2L13-00, KV2L1300
• Tectran Interchange: QL1365-8
• Velvac Interchange: 016287
• Automann Distributor #: 177.12C658

Technical Specifications

• Component Type: Push-to-Connect (PLC) Union Elbow, DOT Air Brake
• Tube End: 1/2 in
• Angle: 90 degree
• Body: Composite with Brass Collet
• Compliance: FMVSS 571.106 / DOT
• Weight: 0.05 lbs
• Package Dims: 5 x 3.25 x 0.9 in
• Condition: New
• Warranty: 1-Year FleetPro Warranty
• Product Level: Fleet Standard Aftermarket
• Brand: Automann (Distributed by FleetPro Parts & Tires)
