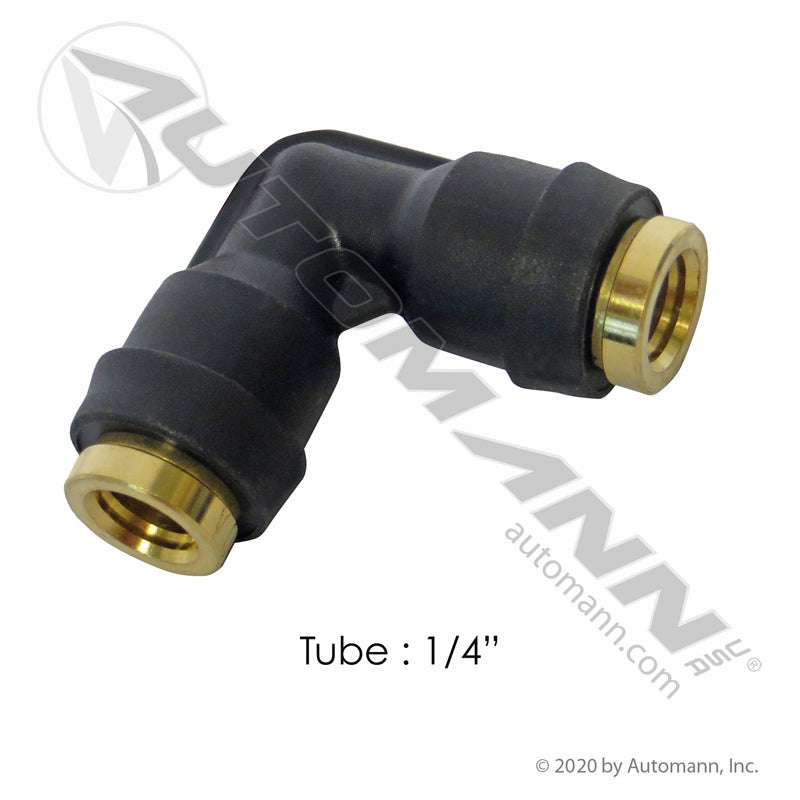

Push-to-Connect Union Elbow - DOT 1/4" 90 Degree Air Brake Fitting - Sloan S765PMT-4 Tectran QL1365-4 177.12C654

Turn a tight corner in the air plumbing without kinking the line using this DOT Push-to-Connect (PLC) Union Elbow distributed by FleetPro Parts & Tires. It joins two 1/4 in air brake tube ends at a clean 90 degree bend, so the run clears a frame rail, a crossmember or a bracket instead of being forced into a radius that eventually cracks. A kinked, chafed or weeping air line bleeds pressure all shift — the compressor cycles nonstop, the low-air buzzer nags, and a leaking brake circuit is an instant out-of-service at the scale. We stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, diesel repair shops, and owner-operators nationwide.

Clean Corners: The 90 Degree DOT Union Elbow Advantage

This Automann fitting pairs a composite body with a brass collet. The composite housing resists the road salt, spray and moisture that pit all-metal fittings, while the brass collet grips the tube where it counts. Assembly is push-to-connect: push the tube home, the collet locks it, and there is no flaring, no compression sleeve to tighten and no torque wrench needed under the truck. At 0.03 lbs, it is the smallest fitting in the 1/4 in family and it hangs no weight on the line it turns.

The elbow is built to the FMVSS 571.106 / DOT requirements that govern brake circuits, which is exactly what an inspector checks. At FleetPro Parts & Tires, we know a brake job is only right when every joint holds. This union elbow is a direct replacement for highly searched industry numbers including Sloan S765PMT-4, Tramec KV2L07-00, Tectran QL1365-4 and Velvac 016283, and it is backed by our 1-Year FleetPro Warranty.

Vehicle Fitment & Compatibility

This DOT air brake fitting uses a universal design intended for the following commercial applications:

• Make/Model: Universal — Class 8 tractors and commercial trailers
• System: Air brake plumbing on tractors and trailers
• Tube Size: 1/4 in on both ends
• Angle: 90 degree
• Compliance: FMVSS 571.106 / DOT brake circuit requirements
• Component Group: Air Brake & Wheel / Air System Manifolds & Valves

Direct Replacement & Cross-Reference Numbers:

This Automann air brake fitting serves as a direct replacement for the following part numbers:

• Sloan Interchange: S765PMT-4, S765PMT4
• Tramec Interchange: KV2L07-00, KV2L0700
• Tectran Interchange: QL1365-4, QL13654
• Velvac Interchange: 016283
• Automann Distributor #: 177.12C654

Technical Specifications

• Component Type: Push-to-Connect (PLC) Union Elbow, DOT Air Brake
• Tube End: 1/4 in
• Angle: 90 degree
• Body: Composite with Brass Collet
• Compliance: FMVSS 571.106 / DOT
• Weight: 0.03 lbs
• Package Dims: 5 x 3.25 x 0.5 in
• Condition: New
• Warranty: 1-Year FleetPro Warranty
• Product Level: Fleet Standard Aftermarket
• Brand: Automann (Distributed by FleetPro Parts & Tires)
