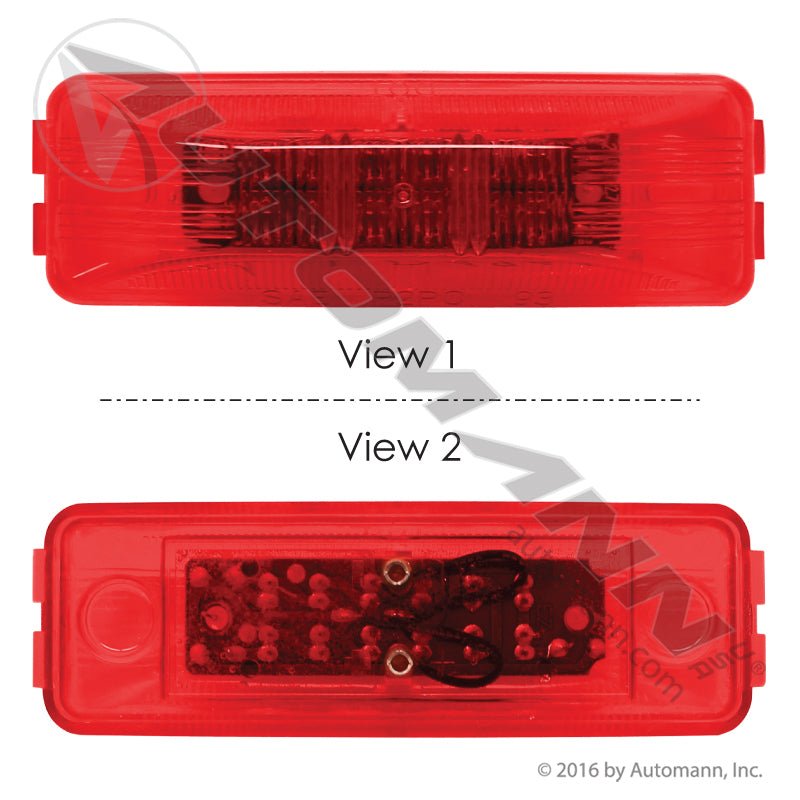

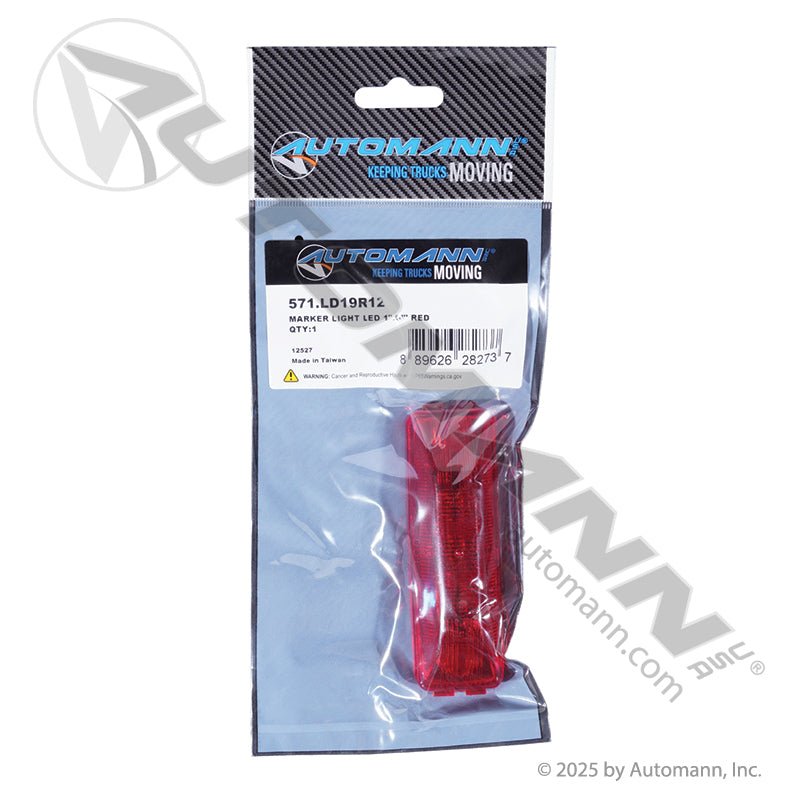

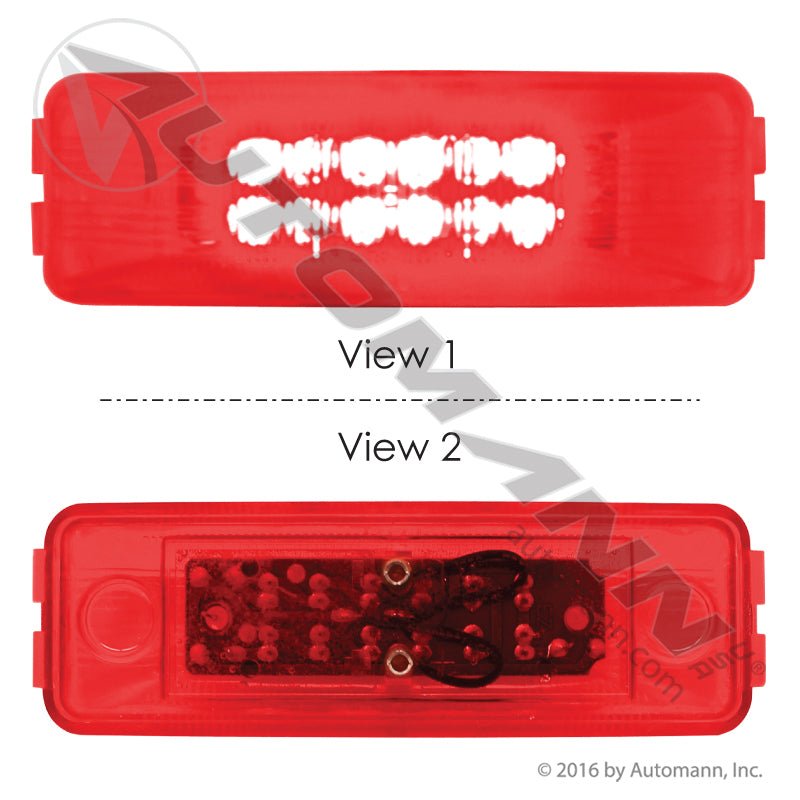

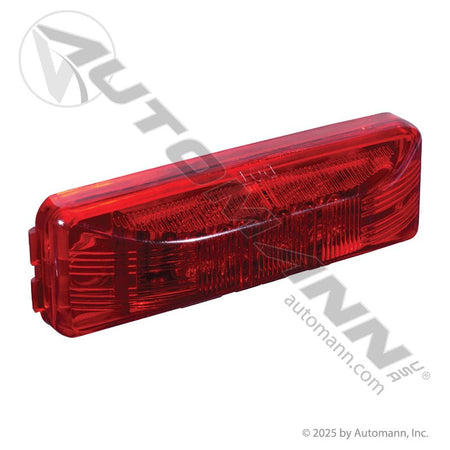

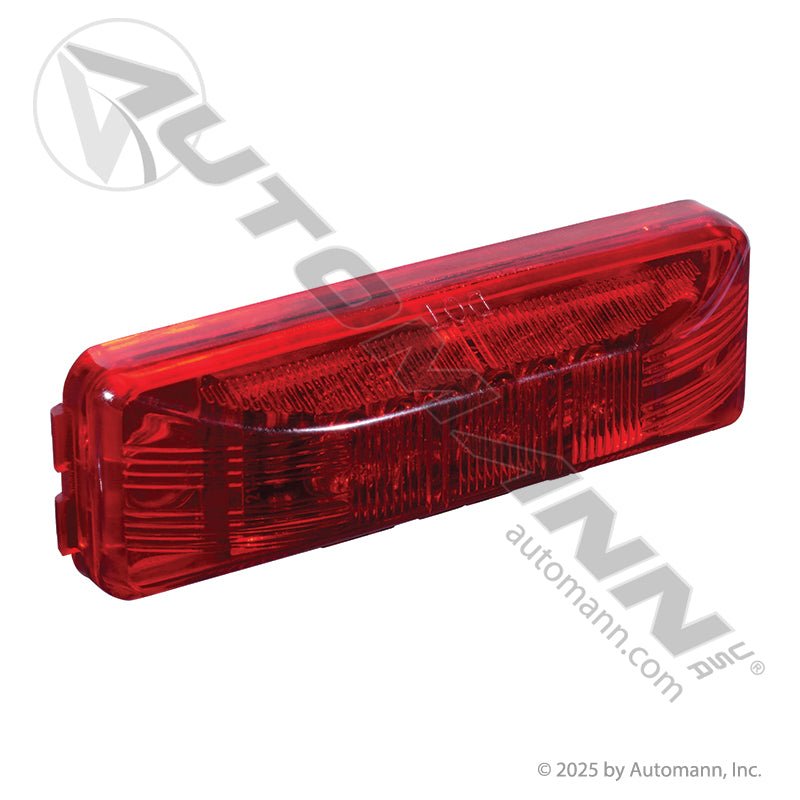

Red Marker & Clearance LED Light - 1 x 4 Inch 12-Diode - Trucklite 19250R 1960 G1902 571.LD19R12
Red Marker & Clearance LED Light - 1 x 4 Inch 12-Diode - Trucklite 19250R 1960 G1902 571.LD19R12
Automann

Red Marker & Clearance LED Light - 1 x 4 Inch 12-Diode - Trucklite 19250R 1960 G1902 571.LD19R12

In stock
SKU: 571.LD19R12
$7.01
  • Ships same dayOn in-stock orders
  • 30-day money-backShop with confidence
  • Secure checkoutEncrypted payment
We acceptAmazon American Express Apple Pay Diners Club Discover Google Pay Mastercard Shop Pay Visa

If you have a large order and would like to get a discount, please fill out this form.

Fitment

Fits these trucks

Universal - Class 8 Trucks, Commercial Trailers, and Utility VehiclesMarks vehicle width and length per DOT lighting requirementsBracket or base mount, 1 in x 4 in rectangular12V electrical systems
Always confirm your year, make & model before ordering.
Part numbers

OEM & interchange numbers

4 cross-refs
Trucklite 19250R Trucklite 1960 Grote G1902 Optronics MCL65RB
Direct 1-to-1 replacement for every number above. Tap any number to copy.
Overview

Bring the red marker points back to full brightness with this 1 x 4 Inch Red 12-Diode LED Marker Light distributed by FleetPro Parts & Tires. Marker and clearance lamps are how everyone behind you judges the width and length of your equipment after dark, and a dead one is both a real safety gap and a note waiting to be written at the next inspection. Twelve diodes across a 4 inch lens put out far more usable light than the single bulb this lamp replaces. Manufactured by Automann to Fleet Standard specifications, it is stocked heavily right here in our Hanover Park, Illinois warehouse for lightning-fast shipping to fleets, trailer repair shops, and owner-operators nationwide.

Twelve Diodes of Red: The 1 x 4 Inch Marker Advantage

This marker and clearance lamp carries 12 diodes behind a red polycarbonate lens in a 1 in x 4 in rectangular body, giving a lit bar long enough to read from an angle instead of a single point of light. It runs on 12V, carries SAE P2, and is built to FMVSS 108 photometrics for marker and clearance lighting.

It mounts on a bracket or base, so it works in the spots where there is no grommet to seat into - a body rail, a rear sill, a mud flap hanger. Because the light source is LED there is no filament to shake apart, which is what finishes most bulb-type markers long before the bulb would have burned out, and the solid-state assembly lights the instant the circuit closes.

At FleetPro Parts & Tires, we know compliance is king. This Automann lamp is a direct replacement for highly searched industry numbers including Trucklite 19250R, 1960, Grote G1902 and Optronics MCL65RB.

Vehicle Fitment & Compatibility

This heavy-duty aftermarket LED marker light uses a universal design intended for the following commercial applications:

  • Make/Model: Universal Class 8 Trucks, Commercial Trailers, and Utility Vehicles
  • Purpose: Marks Vehicle Width and Length per DOT Lighting Requirements
  • Mounting Style: Bracket or Base Mount
  • System Requirement: 12-Volt DC Electrical Systems
  • Component Group: Exterior Lighting / Marker & Clearance Lights

Direct Replacement & Cross-Reference Numbers:

This Automann LED marker light serves as a direct replacement for the following part numbers:

  • Trucklite Interchange: 19250R, 1960
  • Grote Interchange: G1902
  • Optronics Interchange: MCL65RB
  • Automann Distributor #: 571.LD19R12

Technical Specifications

  • Component Type: Marker / Clearance LED Light

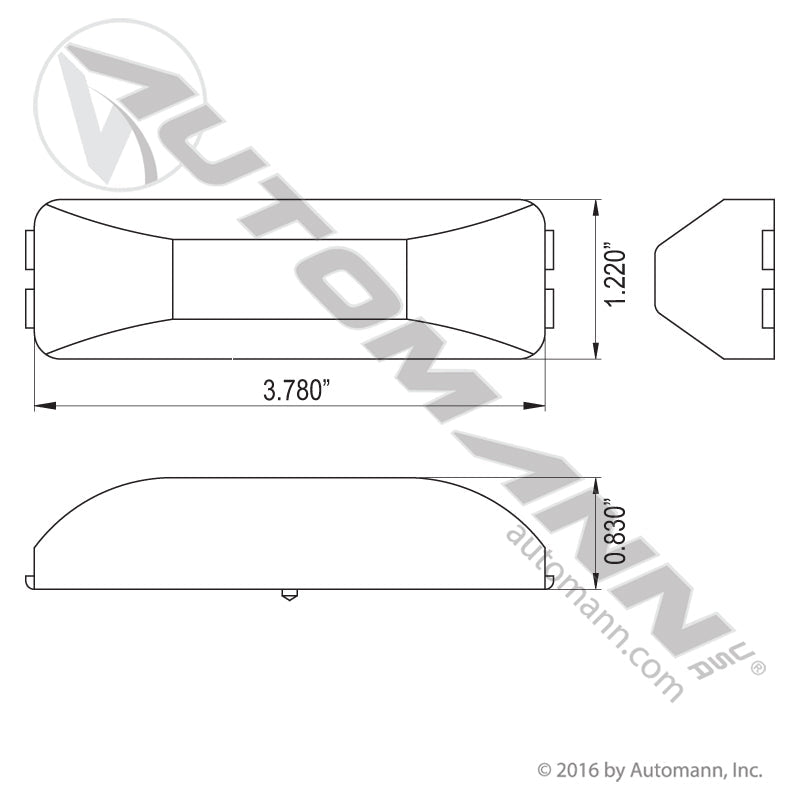

  • Size & Shape: 1 in x 4 in Rectangular
  • Diode Count: 12
  • Lens Material: Red Polycarbonate
  • Mount: Bracket / Base
  • Voltage: 12V
  • Compliance: SAE P2
  • Weight: 0.1 lbs
  • Package Dims: 4 x 1.25 x 1.062 in
  • Product Level: Fleet Standard Aftermarket
  • Brand: Automann (Distributed by FleetPro Parts & Tires)
Key features
  • Twelve-Diode Red Output: Twelve LEDs across a 4 inch lens read as a lit bar rather than a single dot, so the vehicle outline is obvious from an angle.
  • Bracket or Base Mount: Mounts where there is no grommet to seat into, which opens up body rails, rear sills and flap hangers.
  • No Filament to Fail: The LED design removes the filament that constant road vibration destroys in bulb-type markers.
  • SAE P2 Marker Code: Carries the SAE P2 marker and clearance classification an inspector expects to see on the lamp.
  • Red Polycarbonate Lens: The polycarbonate lens takes road salt, washdowns and highway grit without hazing over or cracking.
Specifications
Component Type
Marker / Clearance LED Light
Size & Shape
1 in x 4 in Rectangular
Diode Count
12
Lens Material
Red Polycarbonate
Mount
Bracket / Base
Voltage
12V
Compliance
SAE P2
Weight
0.1 lbs
Package Dims
4 x 1.25 x 1.062 in
UPC
889626282737
Product Level
Fleet Standard Aftermarket
Questions
Will this fit my truck?
This part fits Universal - Class 8 Trucks, Commercial Trailers, and Utility Vehicles, Marks vehicle width and length per DOT lighting requirements, Bracket or base mount, 1 in x 4 in rectangular, 12V electrical systems. Always confirm your year, make and model before ordering.
What part numbers does it replace?
Yes. It is a direct replacement that interchanges with Trucklite 19250R, Trucklite 1960, Grote G1902, Optronics MCL65RB.
How fast does it ship?
In-stock orders placed before 12 PM Central on business days ship the same day from our Hanover Park, IL warehouse, and typically arrive in 2 to 5 business days anywhere in the USA.
What's your return policy?
Unused items in original packaging can be returned within 30 days, backed by our 30-day money-back guarantee. If we ship the wrong part, we cover the return label and send the correct one.
