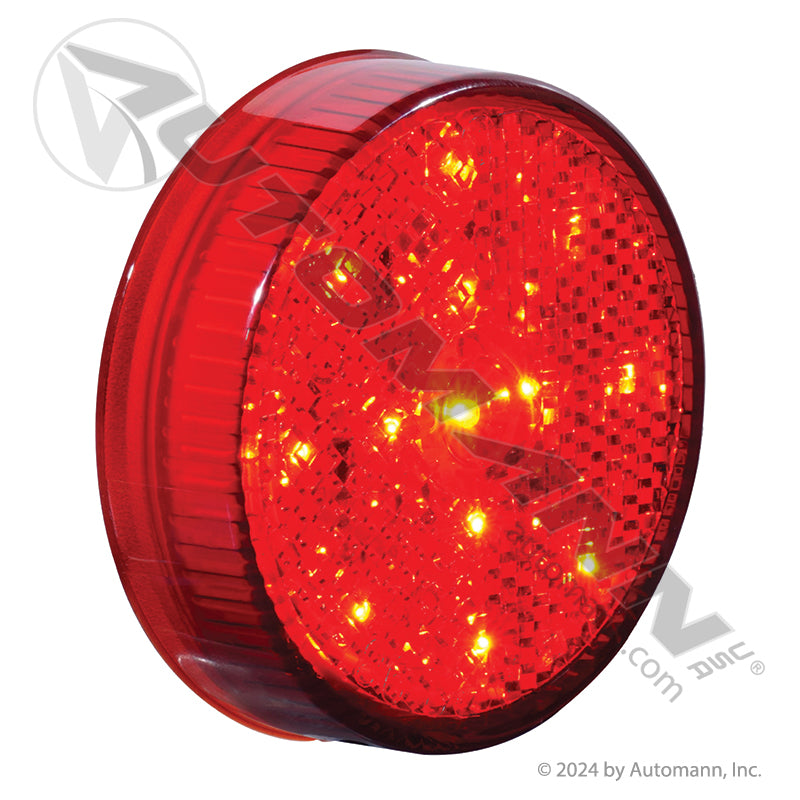

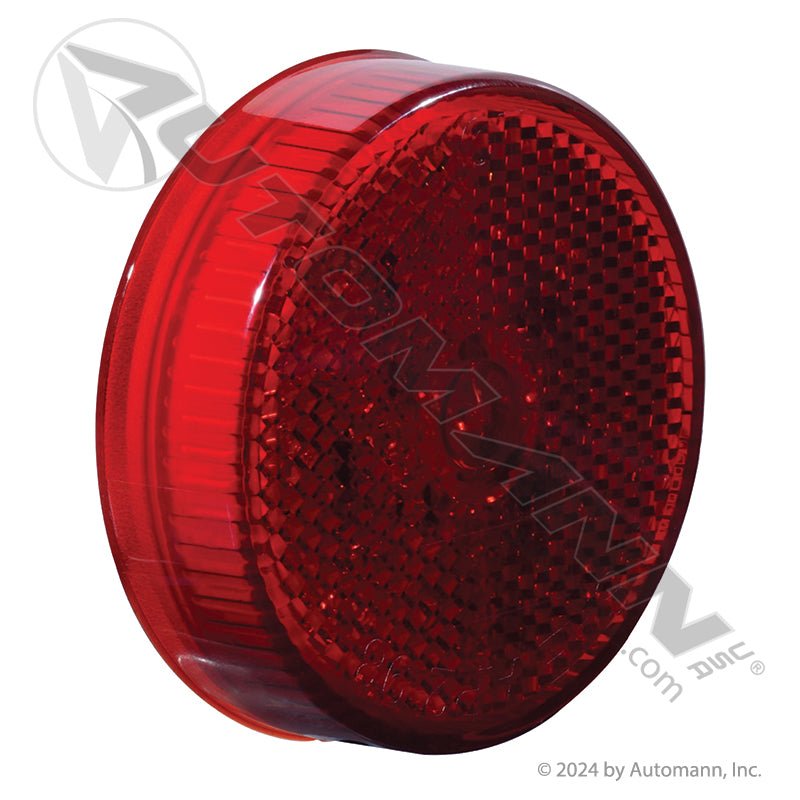

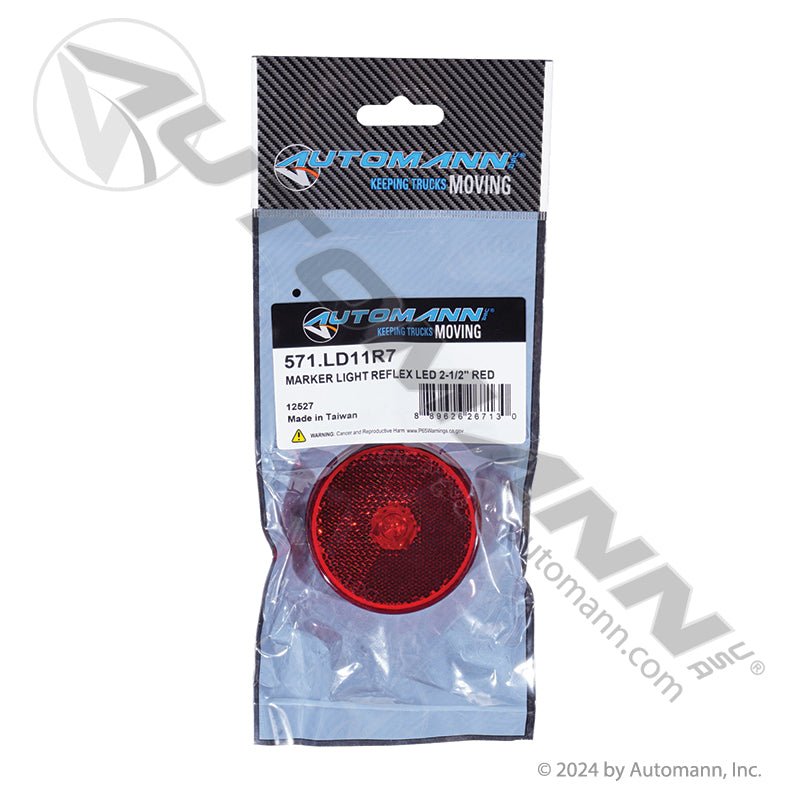

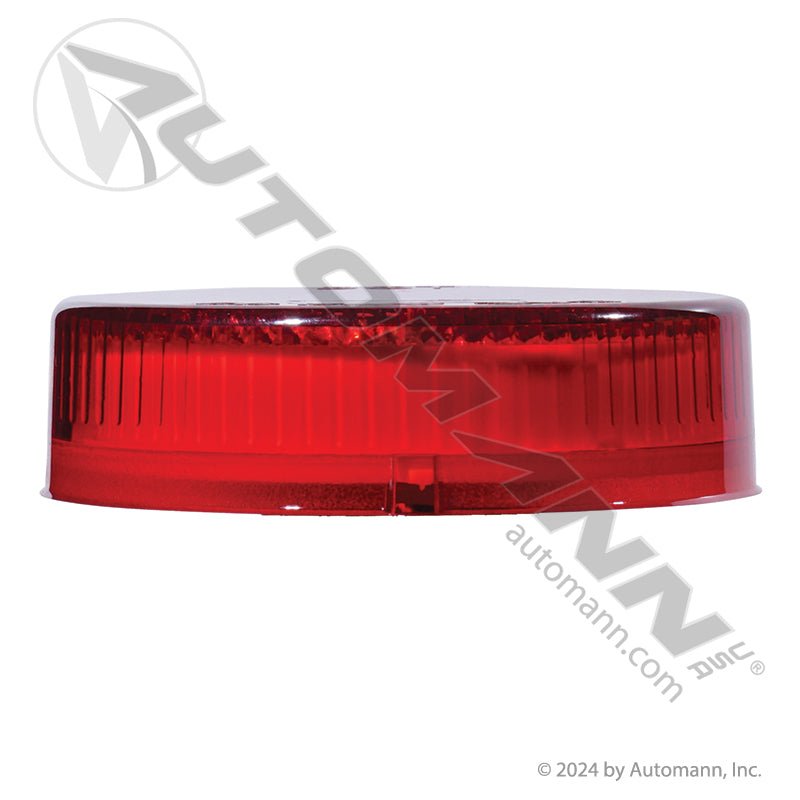

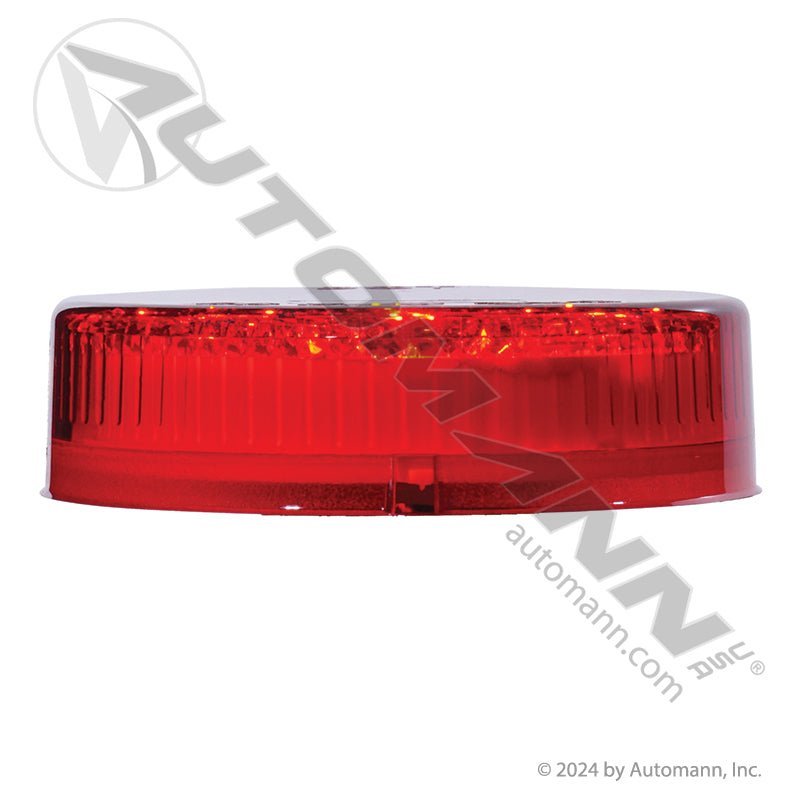

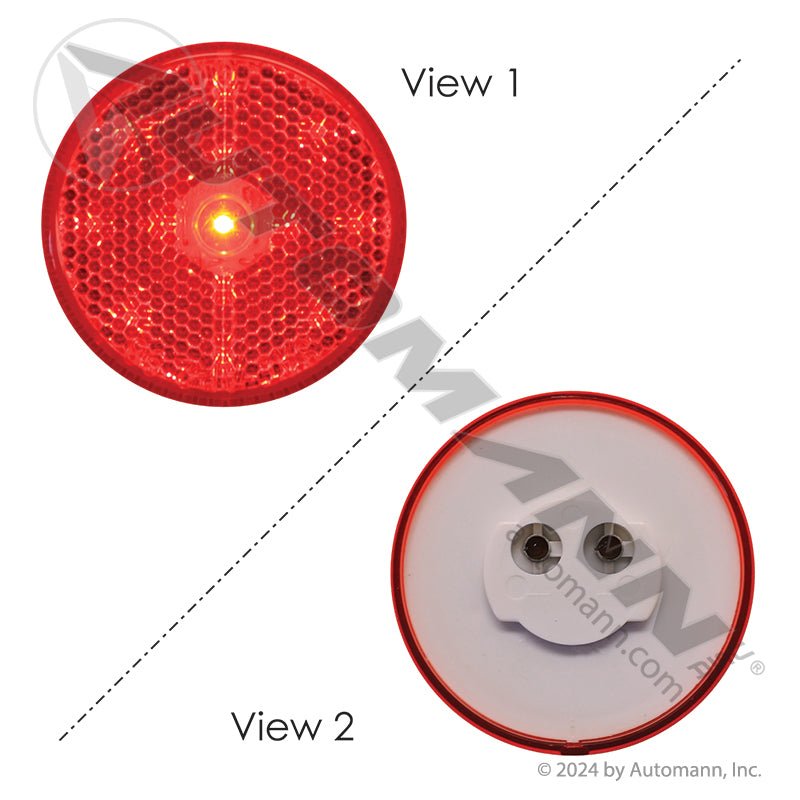

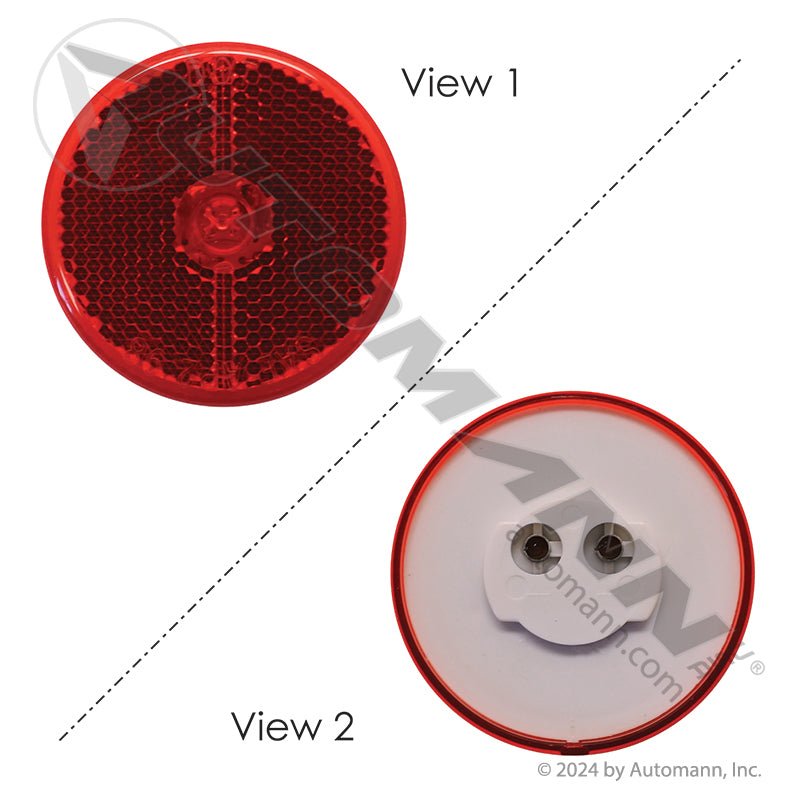

Reflex Marker & Clearance LED Light - 2-1/2 Inch Round Red 7-Diode - Trucklite 1052 G1002 571.LD11R7
Reflex Marker & Clearance LED Light - 2-1/2 Inch Round Red 7-Diode - Trucklite 1052 G1002 571.LD11R7
Automann

Reflex Marker & Clearance LED Light - 2-1/2 Inch Round Red 7-Diode - Trucklite 1052 G1002 571.LD11R7

In stock
SKU: 571.LD11R7
$6.36
  • Ships same dayOn in-stock orders
  • 30-day money-backShop with confidence
  • Secure checkoutEncrypted payment
We acceptAmazon American Express Apple Pay Diners Club Discover Google Pay Mastercard Shop Pay Visa

If you have a large order and would like to get a discount, please fill out this form.

Fitment

Fits these trucks

Universal - Class 8 Trucks, Commercial Trailers, and Utility VehiclesMarks vehicle width and length per DOT lighting requirementsStandard 2-1/2 in round grommet or bracket mountPL-10 marker harness connection
Always confirm your year, make & model before ordering.
Part numbers

OEM & interchange numbers

3 cross-refs
Trucklite 1052 Grote G1002 Optronics MCL59RB
Direct 1-to-1 replacement for every number above. Tap any number to copy.
Overview

Keep every clearance and side-marker point on the rig lit with this 2-1/2 Inch Round Reflex LED Marker Light distributed by FleetPro Parts & Tires. It puts a marker/clearance lamp and a built-in reflex reflector in one housing, so the point glows when the marker circuit is live and still reflects headlights when the truck is parked and dark. A dead marker lamp or a missing reflector is one of the fastest violations an inspector can write, and a filament bulb shaken apart by road vibration is exactly how a rig ends up with one. Manufactured by Automann to Fleet Standard specifications, this lamp is stocked heavily right here in our Hanover Park, Illinois warehouse for lightning-fast shipping to fleets, trailer repair shops, and owner-operators nationwide.

Lit and Reflective: The 2-1/2 Inch Reflex Marker Advantage

This reflex marker lamp runs 7 diodes behind a red polycarbonate lens in a compact 2.5 in round body, marking vehicle width and length the way DOT lighting requirements expect. Because the light source is LED, there is no filament to fail from constant vibration, and the low current draw keeps a long string of markers from loading down the trailer harness.

Installation stays simple. The lamp drops into a standard 2-1/2 in round grommet or sits on a bracket, and the PL-10 connector plugs straight into the existing marker harness with no splicing or crimping on the shoulder. It meets FMVSS 108 and carries SAE P2/A photometrics, so one part covers the marker/clearance function and the reflector requirement at that location.

At FleetPro Parts & Tires, we know compliance is king. This Automann lamp is a direct replacement for highly searched industry numbers including Trucklite 1052, Grote G1002 and Optronics MCL59RB.

Vehicle Fitment & Compatibility

This heavy-duty aftermarket LED marker light uses a universal design intended for the following commercial applications:

  • Make/Model: Universal Class 8 Trucks, Commercial Trailers, and Utility Vehicles
  • Mounting Style: Standard 2-1/2 in Round Grommet or Bracket Mount
  • Connection: PL-10 Marker Harness
  • Component Group: Exterior Lighting / Marker & Clearance Lights

Direct Replacement & Cross-Reference Numbers:

This Automann LED marker light serves as a direct replacement for the following part numbers:

  • Trucklite Interchange: 1052
  • Grote Interchange: G1002
  • Optronics Interchange: MCL59RB
  • Automann Distributor #: 571.LD11R7

Technical Specifications

  • Component Type: Reflex Marker / Clearance LED Light
  • Size & Shape: 2.5 in Round
  • Diode Count: 7
  • Lens Material: Red Polycarbonate
  • Connector: PL-10
  • Mount: Grommet or Bracket
  • Includes: Built-In Reflector
  • Compliance: FMVSS 108, SAE P2/A
  • Weight: 0.12 lbs
  • Package Dims: 2.484 x 2.484 x 0.796 in
  • Product Level: Fleet Standard Aftermarket
  • Brand: Automann (Distributed by FleetPro Parts & Tires)
Key features
  • Lamp and Reflector in One: The built-in reflex reflector covers the marker point and the reflector requirement with a single part and a single hole.
  • 7-Diode LED Output: Seven diodes light instantly and have no filament to shake apart from the road vibration that ends most bulb-type markers.
  • PL-10 Plug-In Install: The PL-10 connector plugs straight into an existing marker harness, so there is no splicing on a wet shoulder.
  • FMVSS 108 and SAE P2/A: Built to the federal photometric standard for marker and clearance lighting, so it holds up at a DOT inspection.
  • Red Polycarbonate Lens: The polycarbonate lens shrugs off road salt, moisture and highway debris that crack cheaper lenses.
Specifications
Component Type
Reflex Marker / Clearance LED Light
Size & Shape
2.5 in Round
Diode Count
7
Lens Material
Red Polycarbonate
Connector
PL-10
Mount
Grommet or Bracket
Includes
Built-in reflector
Compliance
FMVSS 108, SAE P2/A
Weight
0.12 lbs
Package Dims
2.484 x 2.484 x 0.796 in
UPC
889626267130
Product Level
Fleet Standard Aftermarket
Questions
Will this fit my truck?
This part fits Universal - Class 8 Trucks, Commercial Trailers, and Utility Vehicles, Marks vehicle width and length per DOT lighting requirements, Standard 2-1/2 in round grommet or bracket mount, PL-10 marker harness connection. Always confirm your year, make and model before ordering.
What part numbers does it replace?
Yes. It is a direct replacement that interchanges with Trucklite 1052, Grote G1002, Optronics MCL59RB.
How fast does it ship?
In-stock orders placed before 12 PM Central on business days ship the same day from our Hanover Park, IL warehouse, and typically arrive in 2 to 5 business days anywhere in the USA.
What's your return policy?
Unused items in original packaging can be returned within 30 days, backed by our 30-day money-back guarantee. If we ship the wrong part, we cover the return label and send the correct one.
