Right Hand Trailer Brake Camshaft - 11.03" 28 - Spline - HT - S24636 - 1R 125.281102.02 - Automann - FLEETPRO PARTS & TIRES
Right Hand Trailer Brake Camshaft - 11.03" 28 - Spline - HT - S24636 - 1R 125.281102.02 - Automann - FLEETPRO PARTS & TIRES
Automann

Right Hand Trailer Brake Camshaft - 11.03" 28-Spline - HT-S24636-1R

In stock
SKU: 125.281102.02
$29.08
  • Ships same dayOn in-stock orders
  • 30-day money-backShop with confidence
  • Secure checkoutEncrypted payment
We acceptAmazon American Express Apple Pay Diners Club Discover Google Pay Mastercard Shop Pay Visa

If you have a large order and would like to get a discount, please fill out this form.

Fitment

Fits these trucks

Hendrickson INTRAAX HXS trailer axlesBrake Size: 16-1/2 in (16.50 in)Position: Right Hand (RH) / Passenger Side
Always confirm your year, make & model before ordering.
Part numbers

OEM & interchange numbers

6 cross-refs
Hendrickson HT-S24636-1R Hendrickson S24636-1R Hendrickson S233471R Euclid E11434 Euclid E11867 Meritor R607326
Direct 1-to-1 replacement for every number above. Tap any number to copy.
Overview

Restore the stopping power and DOT compliance of your commercial trailer with this premium Right Hand Trailer Brake Camshaft by FleetPro Parts & Tires. Specifically engineered for Hendrickson Intraax trailer axles equipped with 16-1/2" brakes, this heavy-duty passenger-side S-cam translates your air chamber force into smooth, reliable braking action. Worn camshaft splines or rusted journals can cause severe brake drag and uneven shoe wear. We stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets and owner-operators nationwide.

Heavy-Duty Stopping Power: The Right Hand Trailer Brake Camshaft Advantage

This Right Hand Trailer Brake Camshaft is forged from high-strength industrial steel to withstand the immense torsional twisting forces generated during heavy, loaded stops. Measuring an effective length of 11.03 inches, it is incredibly versatile—designed to be used with either enclosed cam tubes or exposed cam setups utilizing a 2-inch O.D. bushing and seal. The precision-machined 1.50"-28 splines ensure a tight, slop-free connection to your automatic slack adjuster, delivering immediate braking response the second you press the pedal.

As we continue to build the largest inventory of commercial truck parts in Illinois, we prioritize wheel-end hardware that guarantees safe, long-lasting performance. Weighing in at a solid 7.56 lbs, this robust RH camshaft features a 1.125-inch thick head to maximize the lifespan of your brake shoes and rollers. Serving as a direct exact-fit replacement for Hendrickson part number HT-S24636-1R, this S-cam is ready to install and get your trailer back in service.

Vehicle Fitment & Compatibility

This heavy-duty right-hand brake camshaft is precision-engineered for the following trailer applications:

  • Axle Application: Commercial Trailer Axles
  • Suspension/Brake Series: Hendrickson Intraax
  • Brake Size Compatibility: 16-1/2" (16.50") Diameter Brakes
  • Position: Right Hand (RH) / Passenger Side

Direct Replacement & Cross-Reference Numbers:

This S-cam serves as a direct exact-fit replacement for the following part numbers:

  • Hendrickson OEM: HT-S24636-1R, S24636-1R

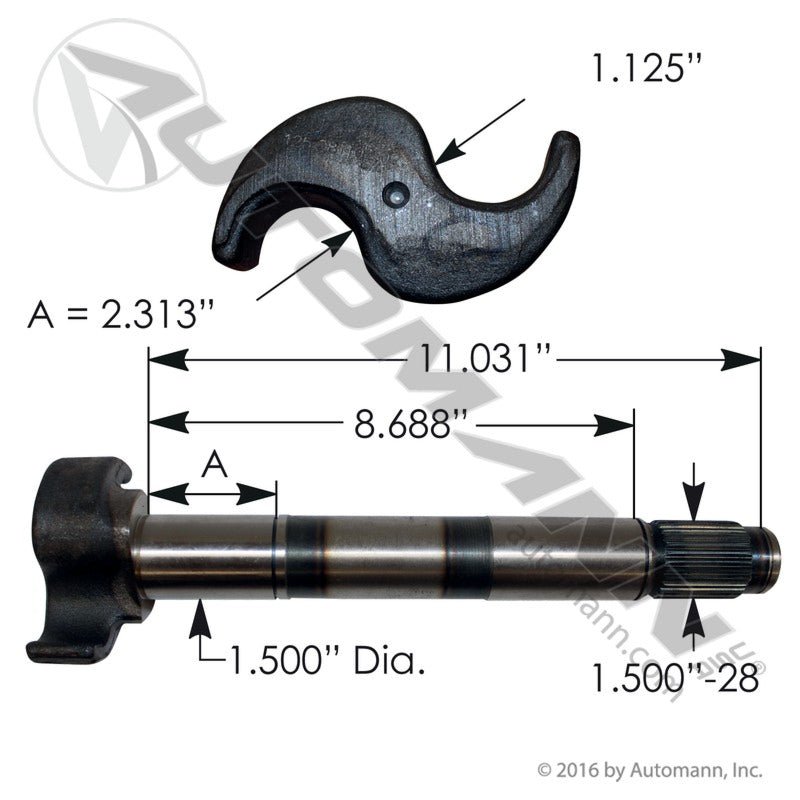

Technical Specifications

  • Effective Length: 11.03"
  • Bushing Journal Length: 2.31"
  • Spline Count & Size: 1.50" Diameter, 28-Spline
  • Head Thickness: 1.12" (1.125")
  • Weight: 7.56 lbs
  • Installation Notes: Compatible with enclosed cam tube or exposed cam (2" O.D. bushing/seal)
  • Brand: FleetPro Parts & Tires
Key features
  • Hendrickson Intraax Fitment: Specifically engineered for Hendrickson Intraax trailer axles running 16.5-inch brakes, ensuring perfect alignment with your shoes and rollers.
  • Precision 28-Spline Shaft: Features a heavy-duty 1.50-inch diameter shaft with 28 precision-cut splines for a tight, zero-play connection to your slack adjuster, eliminating brake lag.
  • Versatile Installation Design: Engineered to seamlessly integrate with both fully enclosed cam tubes and traditional exposed cam setups utilizing a 2-inch O.D. bushing and seal.
  • 1.125" Thick S-Cam Head: Outfitted with a thick 1.12-inch head designed to smoothly push brake rollers, ensuring even shoe-to-drum contact and extending the life of your friction material.
  • Direct OEM Replacement: Seamlessly replaces the factory passenger-side Hendrickson HT-S24636-1R camshaft, saving your shop money without sacrificing fleet-standard quality.
Specifications
Effective Length
11.03 in
Bushing Journal Length
2.31 in
Spline Count and Size
28-Spline, 1.50 in Diameter
Head Thickness
1.125 in
Weight
7.56 lbs
Position
Right Hand (RH)
Installation Notes
Compatible with enclosed cam tube or exposed cam (2 in O.D. bushing/seal)
Questions
Will this fit my truck?
This part fits Hendrickson INTRAAX HXS trailer axles, Brake Size: 16-1/2 in (16.50 in), Position: Right Hand (RH) / Passenger Side. Always confirm your year, make and model before ordering.
What part numbers does it replace?
Yes. It is a direct replacement that interchanges with Hendrickson HT-S24636-1R, Hendrickson S24636-1R, Hendrickson S233471R, Euclid E11434, Euclid E11867, Meritor R607326.
How fast does it ship?
In-stock orders placed before 12 PM Central on business days ship the same day from our Hanover Park, IL warehouse, and typically arrive in 2 to 5 business days anywhere in the USA.
What's your return policy?
Unused items in original packaging can be returned within 30 days, backed by our 30-day money-back guarantee. If we ship the wrong part, we cover the return label and send the correct one.
