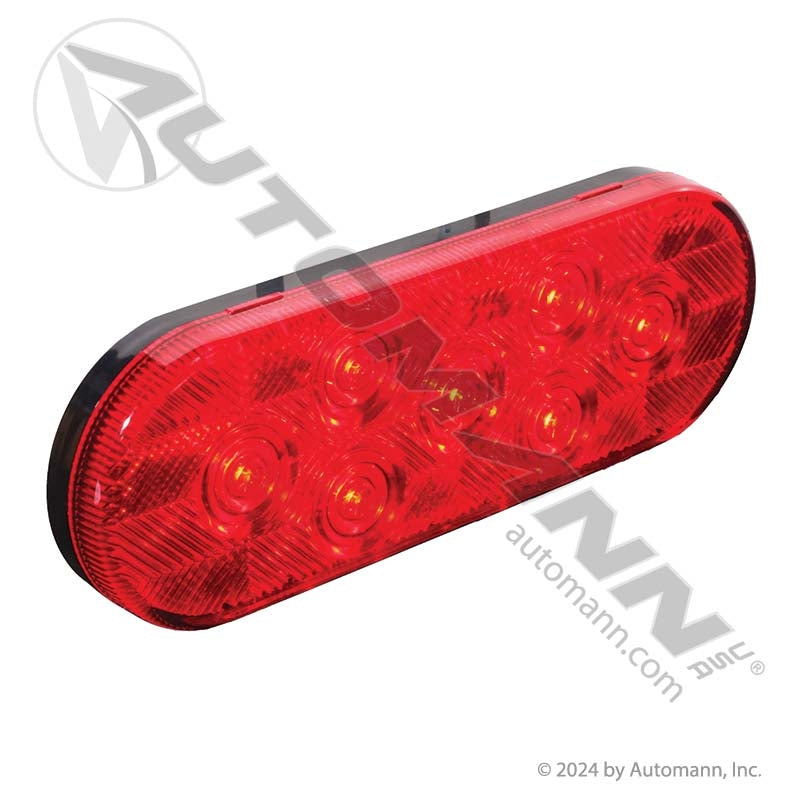

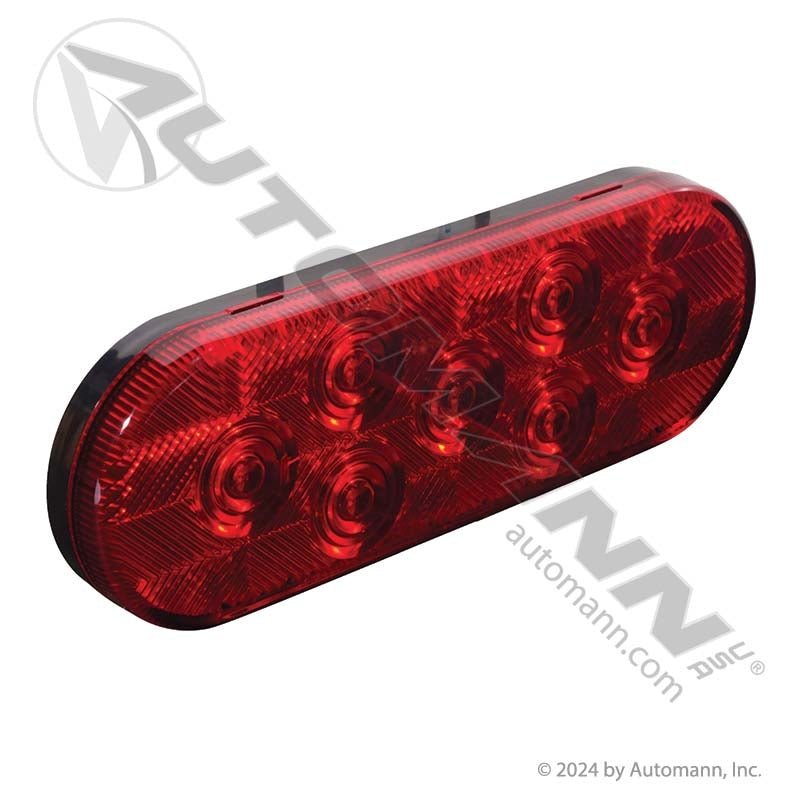

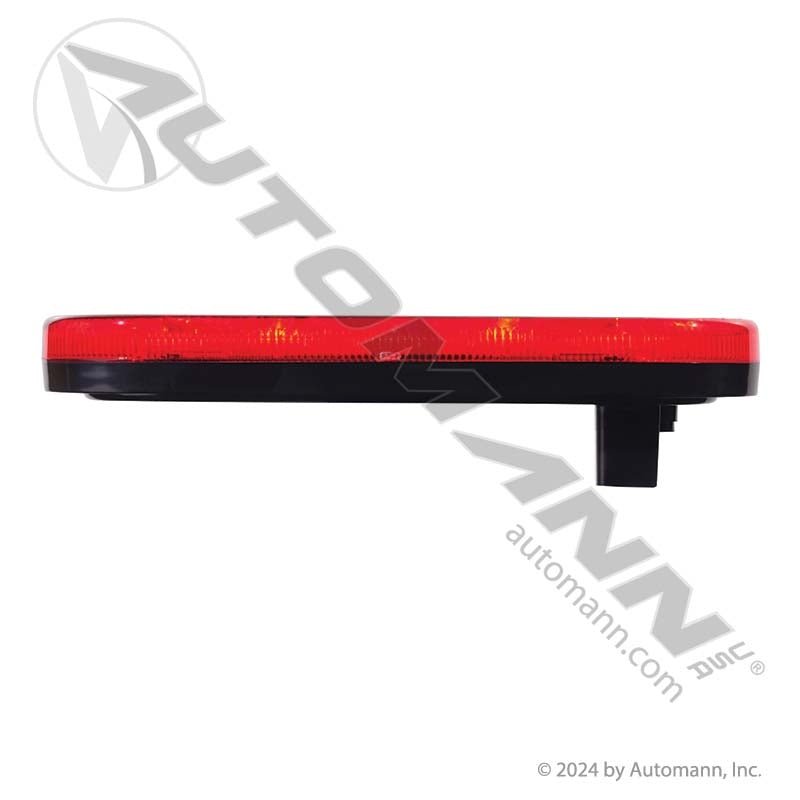

Stop Turn Tail LED Light - 6 Inch Oval Red 7-Diode - Maxxima M63346R STL12RB 571.LD60R7
Stop Turn Tail LED Light - 6 Inch Oval Red 7-Diode - Maxxima M63346R STL12RB 571.LD60R7
Automann

Stop Turn Tail LED Light - 6 Inch Oval Red 7-Diode - Maxxima M63346R STL12RB 571.LD60R7

In stock
SKU: 571.LD60R7
$9.75
  • Ships same dayOn in-stock orders
  • 30-day money-backShop with confidence
  • Secure checkoutEncrypted payment
We acceptAmazon American Express Apple Pay Diners Club Discover Google Pay Mastercard Shop Pay Visa

If you have a large order and would like to get a discount, please fill out this form.

Fitment

Fits these trucks

Universal - Class 8 Trucks and Commercial TrailersRear lighting on trucks and trailersDirect replacement into standard 6 in oval grommets and flanges12V DC electrical systems, PL-3 connection
Always confirm your year, make & model before ordering.
Part numbers

OEM & interchange numbers

2 cross-refs
Maxxima M63346R Optronics STL12RB
Direct 1-to-1 replacement for every number above. Tap any number to copy.
Overview

Stop chasing burnt-out bulbs at the back of the trailer with this 6 Inch Oval Red Stop / Tail / Turn LED Light distributed by FleetPro Parts & Tires. It carries the three functions traffic behind you actually depends on, and a dim or dead rear lamp is a leading cause of rear-end collisions as well as a guaranteed DOT inspection failure. Manufactured by Automann to Fleet Standard specifications, this lamp is stocked heavily right here in our Hanover Park, Illinois warehouse for lightning-fast shipping to fleets, trailer repair shops, and owner-operators nationwide.

Seen From Behind: The 7-Diode Red Oval Advantage

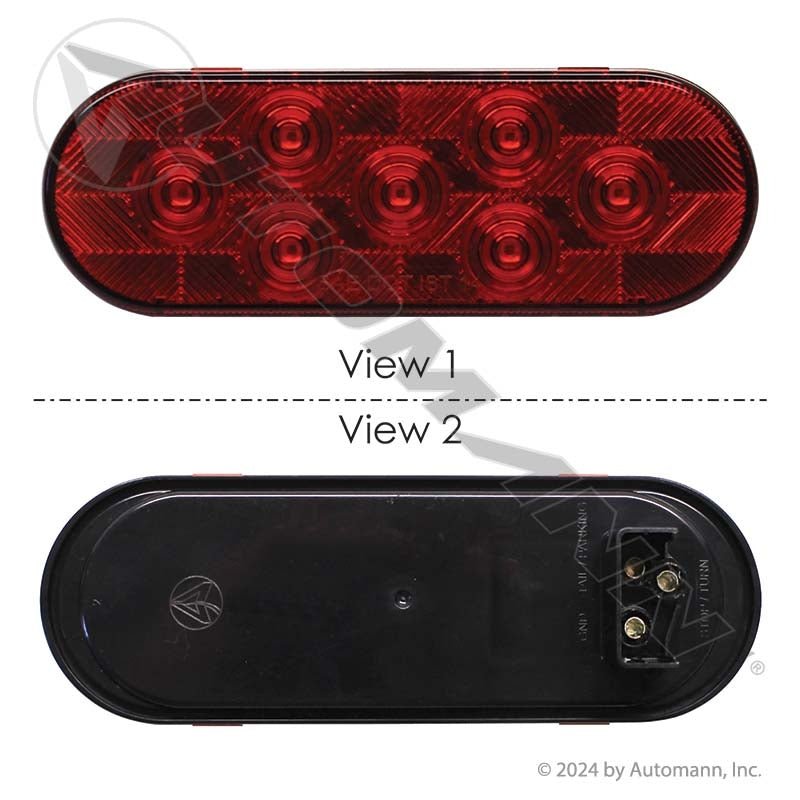

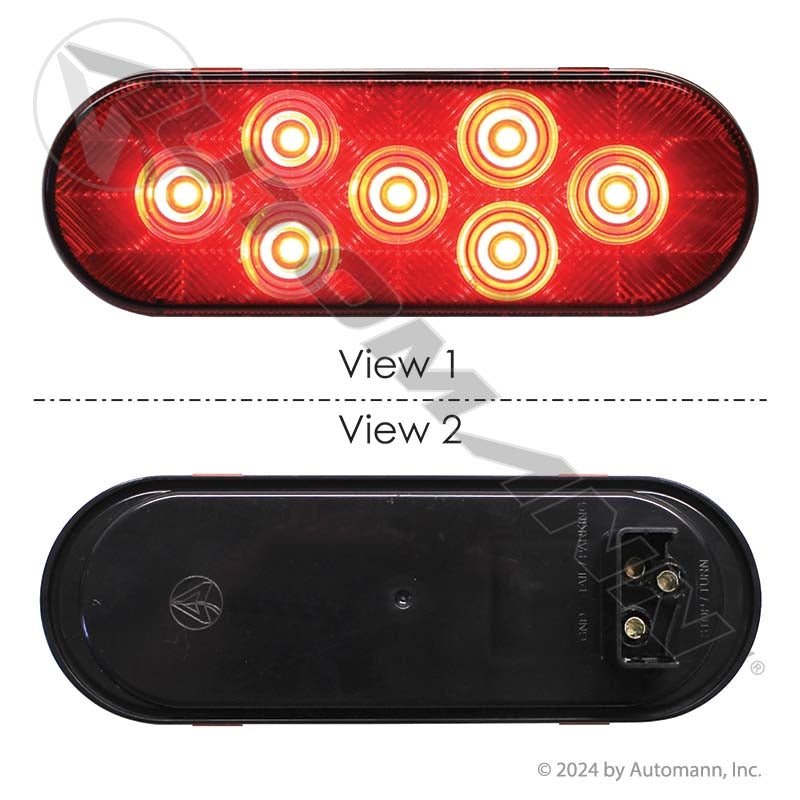

This stop, tail and turn lamp runs 7 red LEDs behind a red polycarbonate lens in a 6.0in oval housing on 12V. LEDs light the instant the brake pedal moves, and that fraction of a second of earlier warning is the whole argument for converting rear lighting away from incandescent. There is no filament to shake apart, and the polycarbonate lens survives the road salt, spray and debris that crack cheaper rear lamps.

Installation is a direct replacement into standard grommets and flanges. The lamp uses a red grommet mount and a PL-3 connector, so it plugs into an existing trailer harness with no splicing. It meets FMVSS 108, which keeps the stop, tail and turn functions road-legal at that position.

At FleetPro Parts & Tires, we know compliance is king. This Automann lamp is a direct replacement for highly searched industry numbers including Maxxima M63346R and Optronics STL12RB.

Vehicle Fitment & Compatibility

This heavy-duty aftermarket LED lamp uses a universal design intended for the following commercial applications:

  • Make/Model: Universal Class 8 Trucks and Commercial Trailers
  • Position: Rear lighting, stop / tail / turn function
  • Mounting Style: Direct replacement into standard 6 in oval grommets and flanges
  • Connection: PL-3
  • Component Group: Exterior Lighting / Rear Signal Lights

Direct Replacement & Cross-Reference Numbers:

This Automann LED lamp serves as a direct replacement for the following part numbers:

  • Maxxima Interchange: M63346R
  • Optronics Interchange: STL12RB
  • Automann Distributor #: 571.LD60R7

Technical Specifications

  • Component Type: Stop / Tail / Turn LED Light
  • Size & Shape: 6 in Oval
  • Diode Count: 7 Red LEDs
  • Lens Material: Red Polycarbonate
  • Connector: PL-3
  • Mount: Grommet
  • Voltage: 12V
  • Compliance: FMVSS 108
  • Weight: 0.3 lbs
  • Package Dims: 6.531 x 2.312 x 1.5 in
  • Product Level: Fleet Standard Aftermarket
  • Brand: Automann (Distributed by FleetPro Parts & Tires)
Key features
  • Instant-On Brake Response: LEDs light the moment the pedal moves, giving the driver behind you a fraction of a second more warning than an incandescent lamp.
  • Three Functions, One Lamp: Stop, tail and turn are handled at a single 6 in oval position, so one part covers the rear signal requirement at that location.
  • PL-3 Plug-In Connection: The PL-3 connector plugs into the existing trailer harness, so there is no splicing on a wet shoulder.
  • Drops Into Standard Grommets: Direct replacement into standard 6 in oval grommets and flanges, no new cutout required.
  • FMVSS 108 Compliant: Keeps the truck or trailer road-legal through a DOT inspection.
Specifications
Component Type
Stop / Tail / Turn LED Light
Size & Shape
6 in Oval
Diode Count
7 Red LEDs
Lens Material
Red Polycarbonate
Connector
PL-3
Mount
Grommet
Voltage
12V
Compliance
FMVSS 108
Weight
0.3 lbs
Package Dims
6.531 x 2.312 x 1.5 in
UPC
889626336393
Product Level
Fleet Standard Aftermarket
Questions
Will this fit my truck?
This part fits Universal - Class 8 Trucks and Commercial Trailers, Rear lighting on trucks and trailers, Direct replacement into standard 6 in oval grommets and flanges, 12V DC electrical systems, PL-3 connection. Always confirm your year, make and model before ordering.
What part numbers does it replace?
Yes. It is a direct replacement that interchanges with Maxxima M63346R, Optronics STL12RB.
How fast does it ship?
In-stock orders placed before 12 PM Central on business days ship the same day from our Hanover Park, IL warehouse, and typically arrive in 2 to 5 business days anywhere in the USA.
What's your return policy?
Unused items in original packaging can be returned within 30 days, backed by our 30-day money-back guarantee. If we ship the wrong part, we cover the return label and send the correct one.
