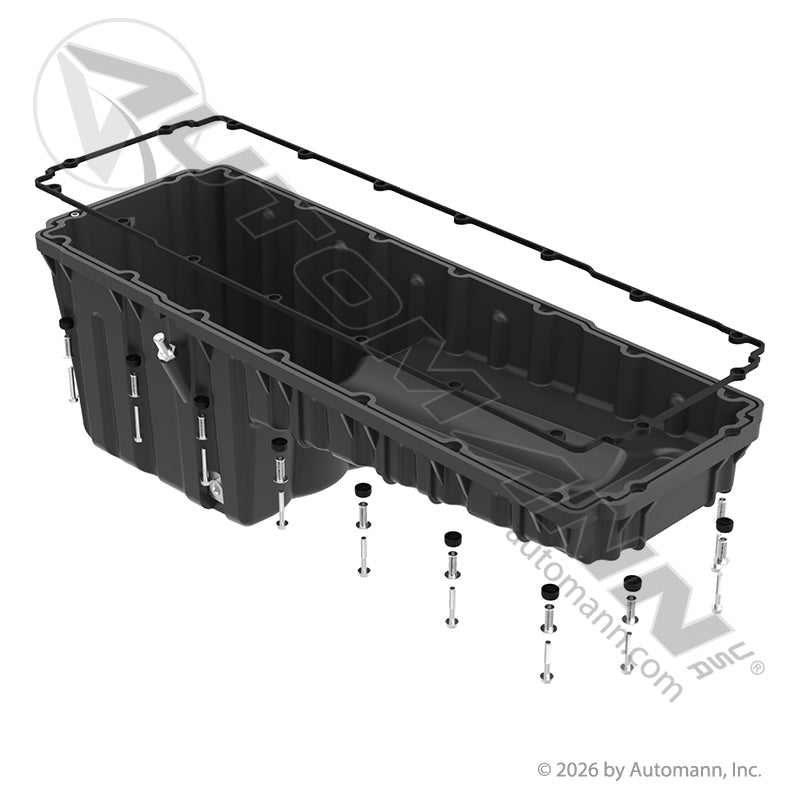

Thermoplastic Engine Oil Pan 47 Qt Front Sump - Detroit DD15 EPA10 / GHG14 / GHG17 - Freightliner A-472-010-23-13 802.46292

Get the DD15 sealed up and back in service with this Thermoplastic Engine Oil Pan distributed by FleetPro Parts & Tires. It is the front-sump, 47 quart pan for Detroit DD15 engines in the EPA10, GHG14 and GHG17 generations, and it is the direct replacement for pans damaged by road debris or corrosion. A cracked pan or a distorted sealing flange is not something you patch. It leaks on the shop floor, it leaks on the customer's lot, and eventually it leaks out the oil the engine needs to stay alive. We stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, diesel repair shops, and owner-operators nationwide.

Correct Sump, Correct Capacity: The DD15 Oil Pan Advantage

Two things have to match on a DD15 pan, and this one gets both: a front sump location and a 47 qt capacity. Sump location decides whether the pickup tube reaches the oil and whether the pan clears what sits under the front of the chassis; capacity decides whether the dipstick reads correctly on a factory fill. This pan also ships with companion components included, listed as M23583BK, 802.G23292 and 802.46292SRK1, so the job does not stall while somebody chases a second part number.

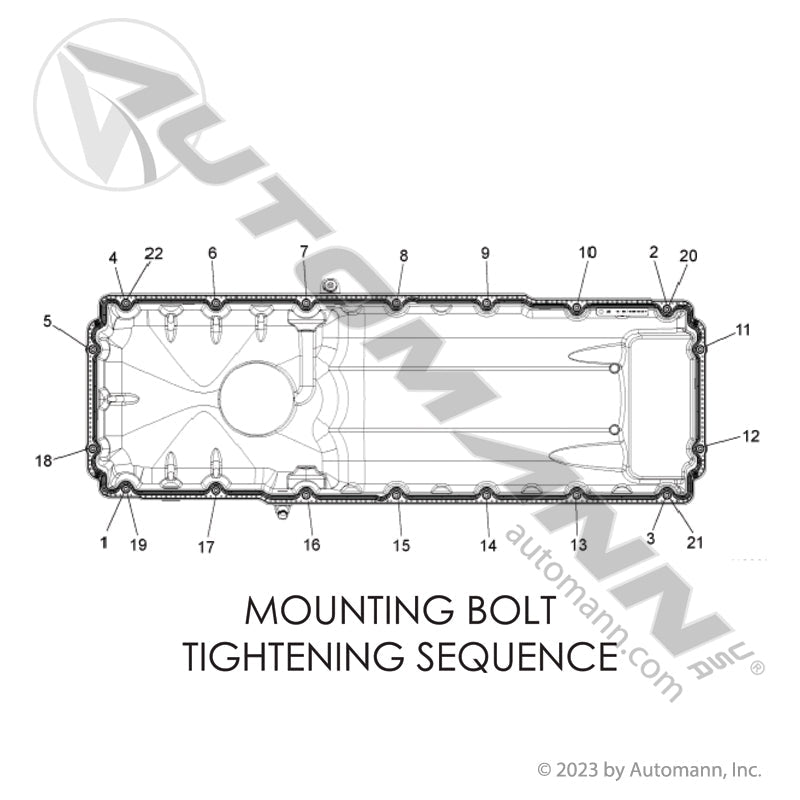

Install matters as much as the part. The recommended torque for the mounting bolts is 22-26 lb-ft, snug and even rather than gorilla-tight, because a thermoplastic pan does not want to be over-torqued. Replace the pan gasket and check pickup clearance during the install. At 28.3 lbs this is a two-hand part, so plan on a helper or a jack. It is a direct replacement for highly searched industry numbers including Detroit Diesel 4720102313 and Freightliner A-472-010-23-13, A-472-010-28-13, A4720102313, A4720102813 and DDEA4720102313.

Vehicle Fitment & Compatibility

This thermoplastic oil pan is intended for the following commercial applications:

• Engine: Detroit DD15 (EPA10 / GHG14 / GHG17)
• Sump Location: Front
• Capacity: 47 qt
• Install: Torque mounting bolts to 22-26 lb-ft, replace the pan gasket and check pickup clearance
• Component Group: Engine / Engine Components

Direct Replacement & Cross-Reference Numbers:

This Automann oil pan serves as a direct replacement for the following part numbers:

• Detroit Diesel Interchange: 4720102313
• Freightliner Interchange: A-472-010-23-13, A-472-010-28-13, A4720102313, A4720102813, DDEA4720102313
• Automann Distributor #: 802.46292

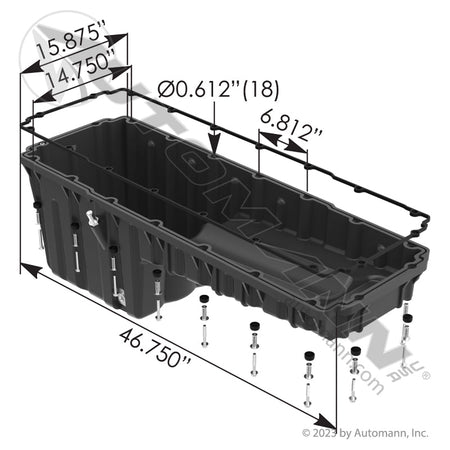

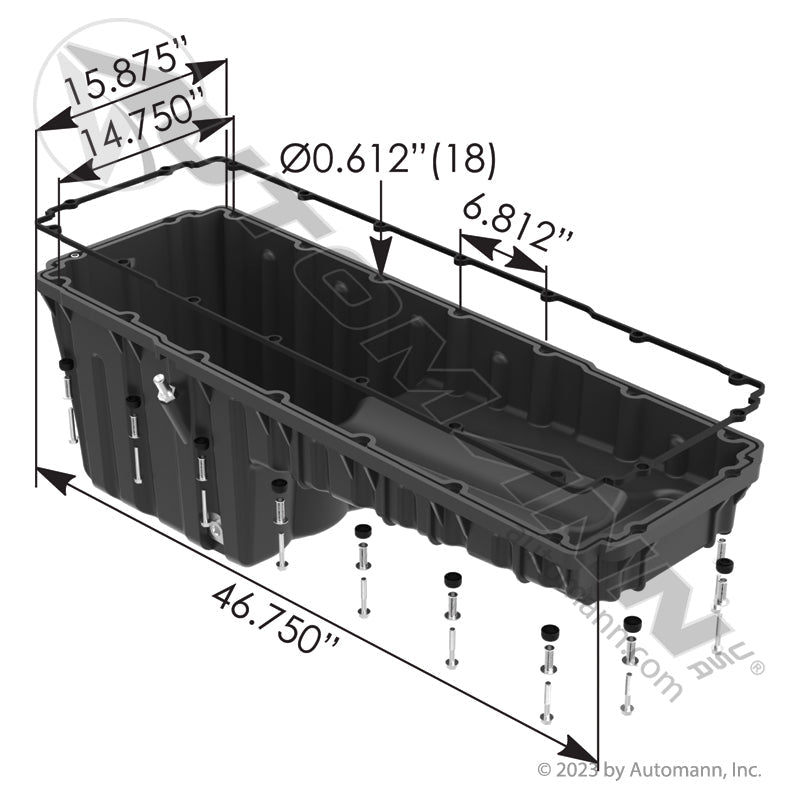

Technical Specifications

• Component Type: Engine Oil Pan
• Material: Thermoplastic
• Capacity: 47 qt
• Sump Location: Front
• Engine: Detroit DD15 (EPA10 / GHG14 / GHG17)
• Includes: M23583BK, 802.G23292 and 802.46292SRK1
• Mounting Bolt Torque: 22-26 lb-ft
• Weight: 28.3 lbs
• Condition: New
• Warranty: 1-Year FleetPro Warranty
• Product Level: Fleet Standard Aftermarket
• Brand: Automann (Distributed by FleetPro Parts & Tires)
