Tie Rod End LH - Ford F650/F750 Ultra Steer 14K 1-1/8in-12 Left Hand Thread - Volvo 1091562 Meritor R230068 462.ES423L

Take the play out of the steering linkage with this Left Hand Tie Rod End distributed by FleetPro Parts & Tires. It is the ball joint that ties the cross tube to the steering arm on the Ford F650/F750 HLU and HLUS Ultra Steer front axle, 2004-2011, and it is the part that has to be tight for the truck to hold a lane. A tie rod end with play in it wanders on the highway, feathers the steer tires until they have to come off early, and turns an alignment into a temporary fix. Manufactured by Automann to Fleet Standard specifications, these are stocked right here in our Hanover Park, Illinois warehouse for lightning-fast shipping to fleets, diesel repair shops, and owner-operators nationwide.

Straight Down The Lane: The Ultra Steer Tie Rod End Advantage

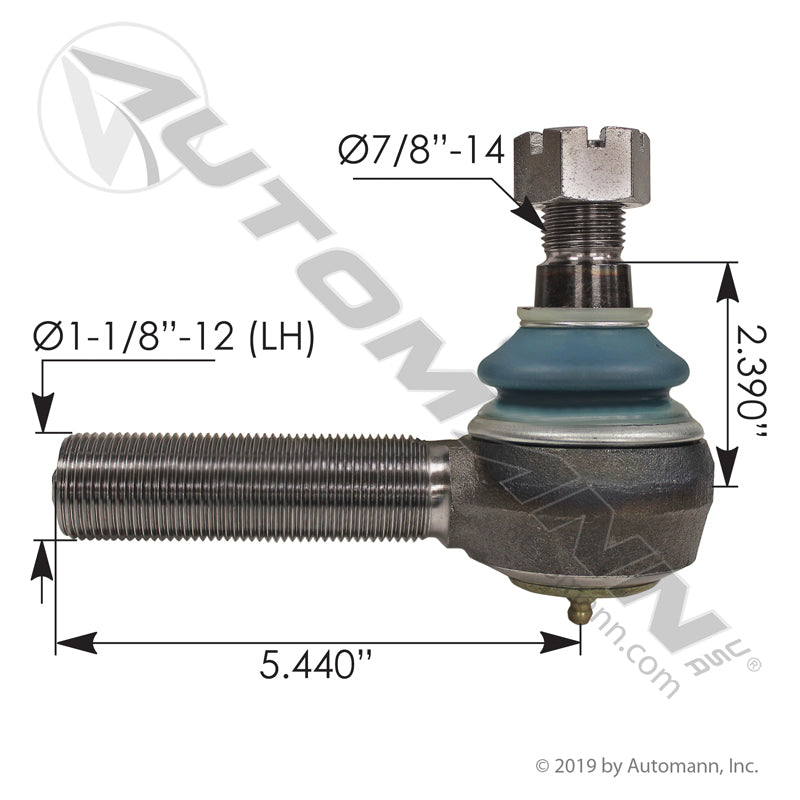

This is the left hand end, cut 1-1/8in-12 with an LH thread, so it threads into the left hand side of the cross tube — the side that will not accept a right hand end no matter how much persuasion it gets. It measures 5.44 in center to end, holding the factory length so the alignment tech is setting toe rather than fighting a geometry change somebody introduced with a close-enough part.

The ball joint is rated for a 14,000 lb axle, which is the front axle weight the F650 and F750 Ultra Steer carries, and the same casting shows up under a long list of Meritor, Hendrickson, Volvo and IHC linkages. Always check alignment after replacement, and inspect the opposite end while the linkage is apart — they wear at similar rates.

At FleetPro Parts & Tires, we know a steering job is only right when the part is right. This tie rod end is a direct replacement for highly searched industry numbers including Volvo 1091562, Meritor R230068, Hendrickson 0029141 and IHC 438368C91.

Vehicle Fitment & Compatibility

This heavy-duty aftermarket tie rod end is intended for the following commercial applications:

• Make/Model: Ford F650/F750 HLU and HLUS Ultra Steer, 2004-2011
• Position: Left hand (LH), cross tube to steering arm
• Thread: 1-1/8in-12, LH thread
• Axle Rating: 14,000 lb axle
• Also Used On: Dana/Spicer, Eaton, Hendrickson Aux and Meritor steering linkages
• Component Group: Steering / Tie Rods & Drag Links

Direct Replacement & Cross-Reference Numbers:

This Automann tie rod end serves as a direct replacement for the following part numbers:

• Volvo Interchange: 1091562, V1091562, 1112811, V1112811, 027092084, 3948883, 85102535, 851102007, 85112007
• Meritor Interchange: A3144E525, A3144N456, A3144N1132, A3144T1190, A43144N456, R230068, R230127, R230413
• Ford Interchange: 4C4O3280BA, 4C4Z3280BA, 4C4O3A130PA, 4C4Z3A130PA, DOHZ3A131A, D0HZ3A131D, E3HZ3A131A, E4HZ3A131A
• Freightliner Interchange: 6073380110, P6073380110, A6073380110
• Hendrickson Interchange: 0029141, 0030001, R0029141, R0030001
• IHC Interchange: 438368C91, 507837C91, FTR8407
• Chevrolet/GM Interchange: 698571, 15515804, 3744497, DOHZ3A131D
• Dana Interchange: 1006146, 140TR109
• Other Interchange: Autocar 370240004, Bluebird Bus 2597151, Bluebird Bus 4278487, Euclid E4614, GMC 15515084, Oshkosh 3KK431, Western Star 370244410, Western Star 370245011, Westport 370250004
• Automann Distributor #: 462.ES423L

Technical Specifications

• Component Type: Tie Rod End, Left Hand (LH)
• Thread: 1-1/8in-12, LH thread
• Length: 5.44 in center to end
• Rating: 14,000 lb axle
• Application: Ford F650/F750 HLU/HLUS Ultra Steer 2004-2011
• Weight: 4.245 lbs
• Product Level: Fleet Standard Aftermarket
• Brand: Automann (Distributed by FleetPro Parts & Tires)
