Tie Rod End RH - Ford F650/F750 Ultra Steer 14K 1-1/8in-12 Right Hand Thread - Volvo/White 1091563 Meritor R230069 462.ES423R

Put the steering linkage back to tight with this Right Hand Tie Rod End distributed by FleetPro Parts & Tires. It is the ball joint connecting the cross tube to the steering arm on the Ford F650/F750 HLU and HLUS Ultra Steer front axle, 2004-2011, and it is the half of the linkage that takes the right hand thread. Play in a tie rod end is felt as wander at highway speed and paid for in feathered steer tires that come off the truck thousands of miles early. Manufactured by Automann to Fleet Standard specifications, these are stocked right here in our Hanover Park, Illinois warehouse for lightning-fast shipping to fleets, diesel repair shops, and owner-operators nationwide.

Straight Down The Lane: The Ultra Steer Tie Rod End Advantage

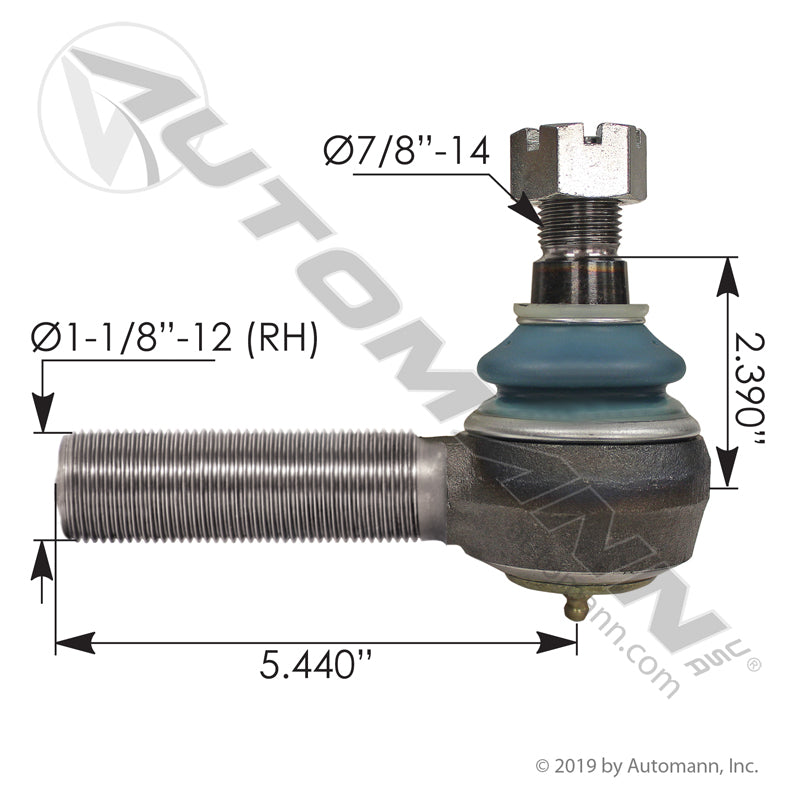

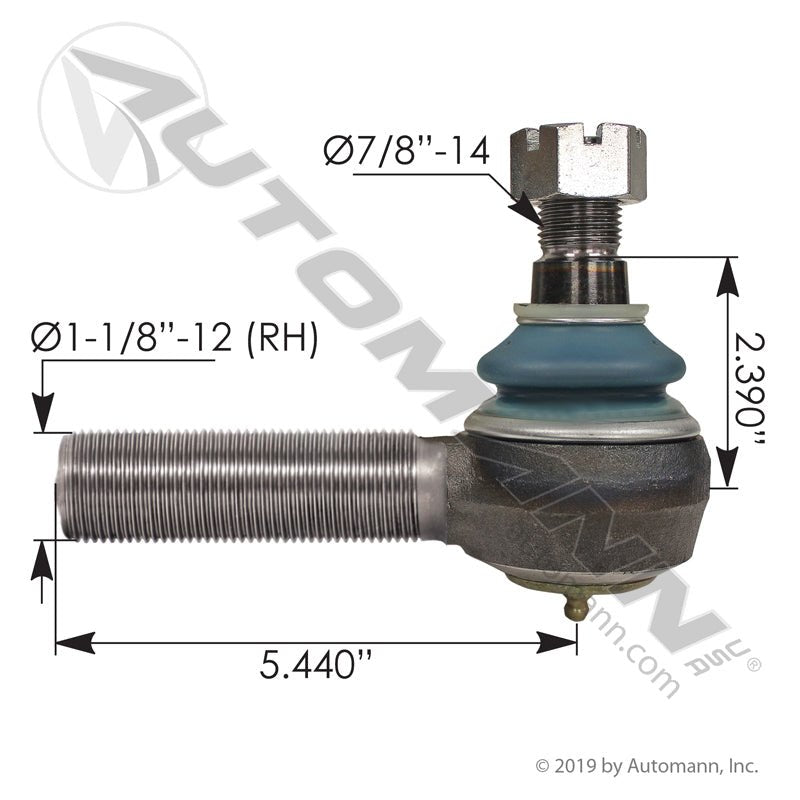

This is the right hand end, cut 1-1/8in-12 with an RH thread, so it goes into the right hand side of the cross tube and lets the linkage be adjusted the way the factory intended. It measures 5.44 in center to end, which is what keeps the toe setting inside the adjuster's range instead of running it out to one end of its travel.

The joint is rated for a 14,000 lb axle — the front axle weight the F650 and F750 Ultra Steer carries — and the same part covers a long list of Meritor, Eaton, Spicer, Hendrickson and Volvo/White linkages. Always check alignment after replacement, and look hard at the opposite end while the linkage is open, because both sides see the same miles.

At FleetPro Parts & Tires, we know a steering job is only right when the part is right. This tie rod end is a direct replacement for highly searched industry numbers including Volvo/White 1091563, Meritor R230069, Hendrickson 0029142 and Spicer FTR423R.

Vehicle Fitment & Compatibility

This heavy-duty aftermarket tie rod end is intended for the following commercial applications:

• Make/Model: Ford F650/F750 HLU and HLUS Ultra Steer, 2004-2011
• Position: Right hand (RH), cross tube to steering arm
• Thread: 1-1/8in-12, RH thread
• Axle Rating: 14,000 lb axle
• Also Used On: Dana/Spicer, Eaton, Hendrickson Aux and Meritor steering linkages
• Component Group: Steering / Tie Rods & Drag Links

Direct Replacement & Cross-Reference Numbers:

This Automann tie rod end serves as a direct replacement for the following part numbers:

• Volvo/White Interchange: 1091563, V1091563, 027092085, 370245010, 3948884, 85112006
• Meritor Interchange: A3144D524, A3144P458, A43144D524, A3144P1134, A3144U1191, R230069, R230128, R230414
• Ford Interchange: 4C4O3A130NA, 4C4Z3280AA, 4C4Z3A130NA, DOHZ3A130A, DOHZ3A130D, E3HZ3A130A, E4HZ3A130A, E4HZ3A130B
• Freightliner Interchange: A6073381510, P-607-338-15-10, 6803381510, P6083381510
• Eaton Interchange: 1006147, 1006149, 120TR110, TE2030
• Hendrickson Interchange: 0029142, 0030002, R0029142, R0030002
• IHC Interchange: 1668408C91, 438369C91, 507838C91, FTR8408
• Spicer Interchange: FTR423R, SP692244
• Chevrolet/GM Interchange: 15515805, 461672C91, 698572
• Other Interchange: Autocar 370240005, Bluebird Bus 2597250, Dana 140TR110, Dodge 3744496, Euclid E4615, Oshkosh 3KK432, Thomasbilt 61110153, Western Star 370244411, Western Star 37024-5010, Westport 370250005
• Automann Distributor #: 462.ES423R

Technical Specifications

• Component Type: Tie Rod End, Right Hand (RH)
• Thread: 1-1/8in-12, RH thread
• Length: 5.44 in center to end
• Rating: 14,000 lb axle
• Application: Ford F650/F750 HLU/HLUS Ultra Steer 2004-2011
• Weight: 4.29 lbs
• Product Level: Fleet Standard Aftermarket
• Brand: Automann (Distributed by FleetPro Parts & Tires)
