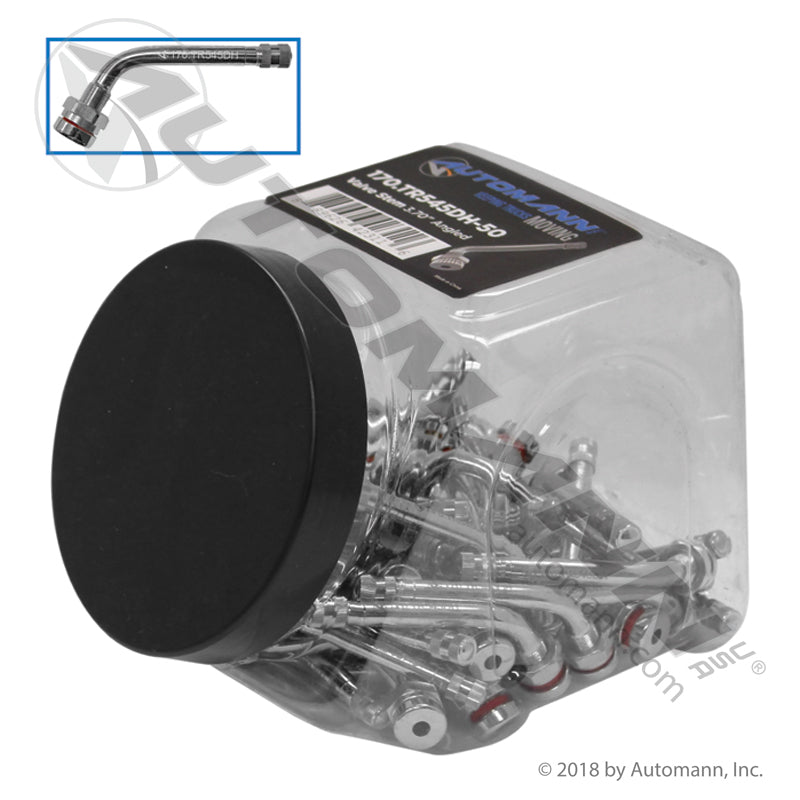

Tubeless Valve Stem 3.700in Angled 60 Degree - TR545DH Alcoa Style Wheel - 50-Piece Shop Jar 170.TR545DH-50
Tubeless Valve Stem 3.700in Angled 60 Degree - TR545DH Alcoa Style Wheel - 50-Piece Shop Jar 170.TR545DH-50
Automann

Tubeless Valve Stem 3.700in Angled 60 Degree - TR545DH Alcoa Style Wheel - 50-Piece Shop Jar 170.TR545DH-50

Only 2 left
SKU: 170.TR545DH-50
$177.13
  • Ships same dayOn in-stock orders
  • 30-day money-backShop with confidence
  • Secure checkoutEncrypted payment
We acceptAmazon American Express Apple Pay Diners Club Discover Google Pay Mastercard Shop Pay Visa

If you have a large order and would like to get a discount, please fill out this form.

Fitment

Fits these trucks

Universal - Class 8 trucks and trailers on aluminum wheels22.5in and 24.5in aluminum Alcoa style truck wheels9.7mm (0.382in) valve holeDual and disc wheel setups - high-volume tire service
Always confirm your year, make & model before ordering.
Part numbers

OEM & interchange numbers

1 cross-ref
Industry Reference TR545DH
Direct 1-to-1 replacement for every number above. Tap any number to copy.
Overview

Keep the tire bay stocked with this 50-piece jar of TR545DH clamp-in tubeless valve stems distributed by FleetPro Parts & Tires. These are TR545 family stems in the DH angled configuration, built for aluminum truck wheels (Alcoa style) that use the smaller 9.7mm (0.382in) valve hole. Nothing slows a tire shop down like breaking a wheel down and then finding the right valve is not on the shelf, and nothing costs a fleet more than a stem that gets reused because a new one was not handy. Manufactured by Automann to Fleet Standard specifications, we stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, tire shops, and owner-operators nationwide.

Bulk on the Bench: The TR545DH 50-Piece Jar Advantage

Every stem in the jar carries the 3.700in effective length and the 60 degree bend that make this a shop favorite: the angled body brings the valve out to a position a gauge and an air chuck can actually reach on duals and disc wheels, so a pressure check does not turn into a wrestling match with the wheel face. Checks that are easy get done, and tires that get checked do not run low.

Sealing is handled by an O-ring at the rim rather than a rubber snap-in grommet, which is exactly what the smaller aluminum-wheel valve hole calls for. At FleetPro Parts & Tires, we know a high-volume tire operation buys in jars for a reason: one part number, fifty valves, and the right Alcoa style stem always within arm's reach of the machine. These are the standard shop replacement for leaking or damaged O-ring seal valves, listed against the industry reference TR545DH.

Vehicle Fitment & Compatibility

This universal-application truck valve is intended for the following commercial use:

  • Make/Model: Universal - Class 8 trucks and trailers running aluminum wheels
  • Wheel: 22.5in and 24.5in aluminum Alcoa style truck wheels
  • Valve Hole: 9.7mm (0.382in) rim hole
  • Position: Dual and disc wheel setups - the 60 degree bend puts the valve within reach
  • Pack: 50-piece shop jar for high-volume tire service
  • Component Group: Air Brake & Wheel / Wheel End (Seals & Bearings)

Direct Replacement & Cross-Reference Numbers:

This Automann valve stem is listed and ordered under the following part numbers:

  • Industry Reference: TR545DH
  • Automann Distributor #: 170.TR545DH-50

Technical Specifications

  • Component Type: Clamp-In Tubeless Truck Valve, TR545 Family
  • Rim Hole (Bore): 9.7mm (0.382in)
  • Effective Length: 3.700in
  • Bend Angle: 60 degrees
  • Seal: O-ring
  • Pack Quantity: 50-piece jar
  • Weight: 5.0 lbs
  • UPC: 889626423116
  • Product Level: Fleet Standard Aftermarket
  • Brand: Automann (Distributed by FleetPro Parts & Tires)
Key features
  • 50-Piece Shop Jar: One part number keeps fifty of the right Alcoa style valves within arm's reach of the tire machine.
  • Angled 60 Degree Body: Brings the valve out where a gauge and an air chuck can reach it on duals and disc wheels, so pressure checks actually get done.
  • Built for Alcoa Style Wheels: Sized for the smaller 9.7mm (0.382in) aluminum wheel valve hole rather than the large truck bore.
  • O-Ring Rim Seal: Seals at the rim without a snap-in grommet, the correct arrangement for an aluminum wheel valve hole.
  • 3.700in Effective Length: Enough reach to clear the wheel face without leaving the valve hanging out where it can be struck.
Specifications
Component Type
Clamp-In Tubeless Truck Valve, TR545 Family
Rim Hole (Bore)
9.7mm (0.382in)
Effective Length
3.700in
Bend Angle
60 degrees
Seal
O-ring
Pack Quantity
50-piece jar
Weight
5.0 lbs
UPC
889626423116
Product Level
Fleet Standard Aftermarket
Questions
Will this fit my truck?
This part fits Universal - Class 8 trucks and trailers on aluminum wheels, 22.5in and 24.5in aluminum Alcoa style truck wheels, 9.7mm (0.382in) valve hole, Dual and disc wheel setups - high-volume tire service. Always confirm your year, make and model before ordering.
What part numbers does it replace?
Yes. It is a direct replacement that interchanges with Industry Reference TR545DH.
How fast does it ship?
In-stock orders placed before 12 PM Central on business days ship the same day from our Hanover Park, IL warehouse, and typically arrive in 2 to 5 business days anywhere in the USA.
What's your return policy?
Unused items in original packaging can be returned within 30 days, backed by our 30-day money-back guarantee. If we ship the wrong part, we cover the return label and send the correct one.
