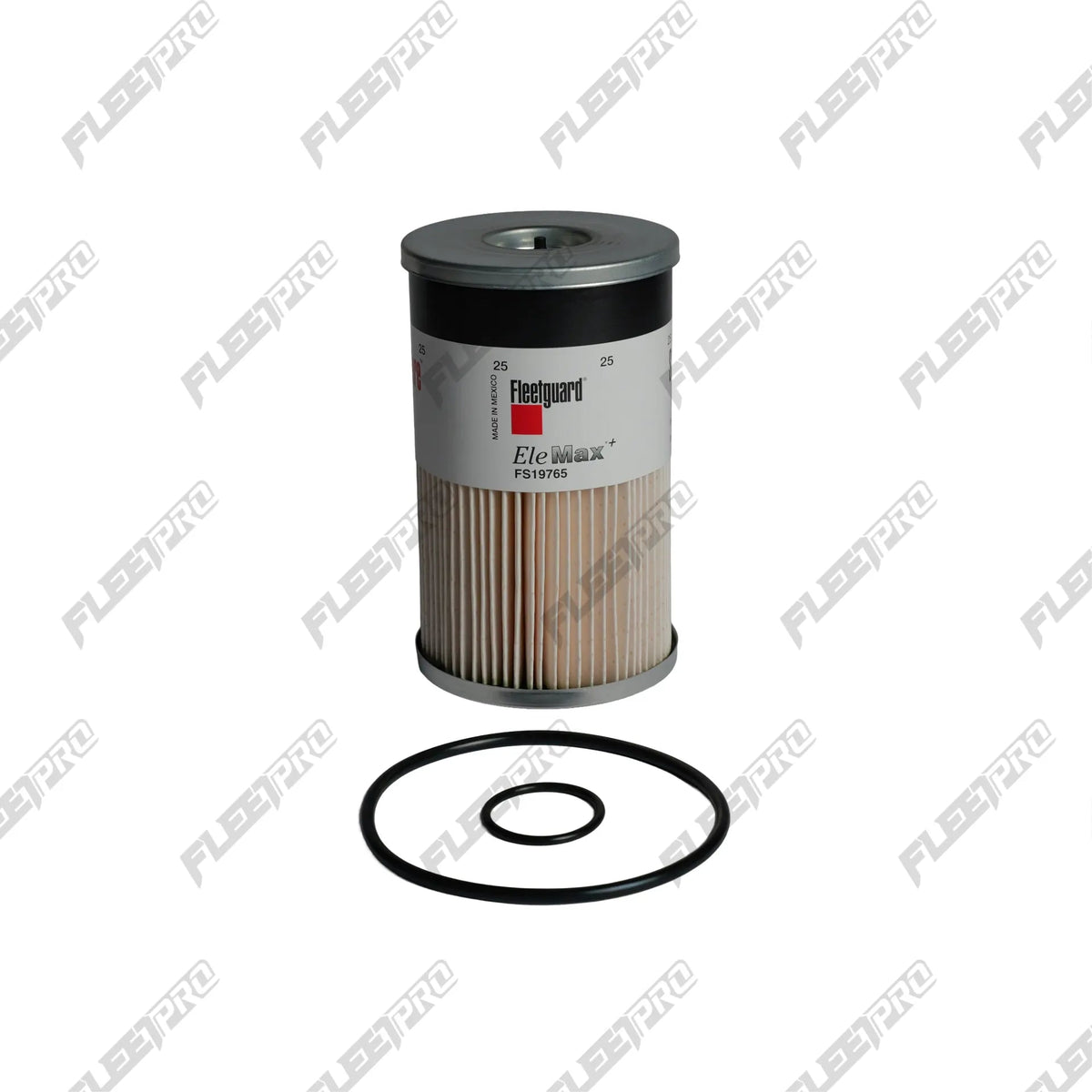

Fleetguard EleMax Fuel/Water Separator - 25 Micron Davco Fuel Pro Cartridge - Volvo 21737481 Baldwin PF7930 FS19765
Regular price
$25.99
Couldn't load pickup availability
- Ships same dayOn in-stock orders
- 30-day money-backShop with confidence
- Secure checkoutEncrypted payment
We accept
Fitment
Fits these trucks
Davco Fuel Pro (FH230 series) and Industrial Pro (FH234 series) housingsVolvo D11, D13 and D16; Mack MP7 and MP8 (2007-2021)Volvo VNL, VNR and VNX; Mack Pinnacle, Anthem and GranitePrimary-stage fuel/water separator element
Always confirm your year, make & model before ordering.
Part numbers
OEM & interchange numbers
15 cross-refsBaldwin PF7930 Donaldson P550851 Donaldson P568522 WIX WF10005 Luber-Finer L9765FXL NAPA 601005 Carquest 96005 Volvo 85120233 Volvo 21737499 Volvo 21737481 Paccar 382951PAC25 Davco 102528 Davco 102761 Davco 382136 Hengst E834KPD757
Direct 1-to-1 replacement for every number above. Tap any number to copy.
Overview
Water in diesel is what rusts and seizes an injector, and the Fleetguard FS19765 is the premium plus-size EleMax cartridge fuel/water separator that keeps it out. It is the primary-stage element in the Davco Fuel Pro and Industrial Pro fuel conditioning systems fitted to Volvo and Mack heavy trucks, and it arrives complete with its seal. We stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, diesel repair shops, and owner-operators nationwide.
Water Out, Power In: The EleMax Separator Advantage
The element is built around StrataPore coalescing media rated 25 micron with a 98.7% TWA efficiency under SAE J1985, and it pulls 95% of free water and 95% of emulsified water out of the fuel stream. A patented control valve makes the fuel use the full height of the media rather than loading the bottom inch first, so you get the whole service interval you paid for, and the element is rated for biodiesel blends. It measures 7.04 in long with a 4.21 in largest OD and a 0.66 in end-1 ID for the Fuel Pro FH230 and Industrial Pro FH234 housings.
At FleetPro Parts & Tires, we stock the element the fuel module was designed around. This separator is a direct replacement for highly searched industry numbers including Baldwin PF7930, Donaldson P550851 and P568522, WIX WF10005, Luber-Finer L9765FXL, NAPA 601005 and Carquest 96005, plus Volvo 21737481, 21737499 and 85120233. Change it at the scheduled PM, when fuel restriction warns, or the moment the water-in-fuel indicator trips on the housing.
Vehicle Fitment & Compatibility
This OE-grade fuel/water separator element is intended for the following commercial applications:
- Housing: Davco Fuel Pro (FH230 series) and Industrial Pro (FH234 series) fuel conditioning modules
- Engines: Volvo D11, D13 and D16; Mack MP7 and MP8 (2007-2021)
- Make/Model: Volvo VNL, VNR and VNX; Mack Pinnacle, Anthem and Granite
- Position: Primary-stage fuel/water separator element
- Component Group: Filtration / Fuel Filters
Direct Replacement & Cross-Reference Numbers:
This Fleetguard separator element serves as a direct replacement for the following part numbers:
- Baldwin Interchange: PF7930
- Donaldson Interchange: P550851, P568522
- WIX Interchange: WF10005
- Luber-Finer Interchange: L9765FXL
- NAPA / Carquest Interchange: 601005, 96005
- Volvo Interchange: 85120233, 21737499, 21737481
- Paccar Interchange: 382951PAC25
- Davco Interchange: 102528, 102761, 382136
- Hengst Interchange: E834KPD757
- Fleetguard Part #: FS19765
Technical Specifications
- Component Type: Cartridge Fuel/Water Separator Element (EleMax, Plus Size)

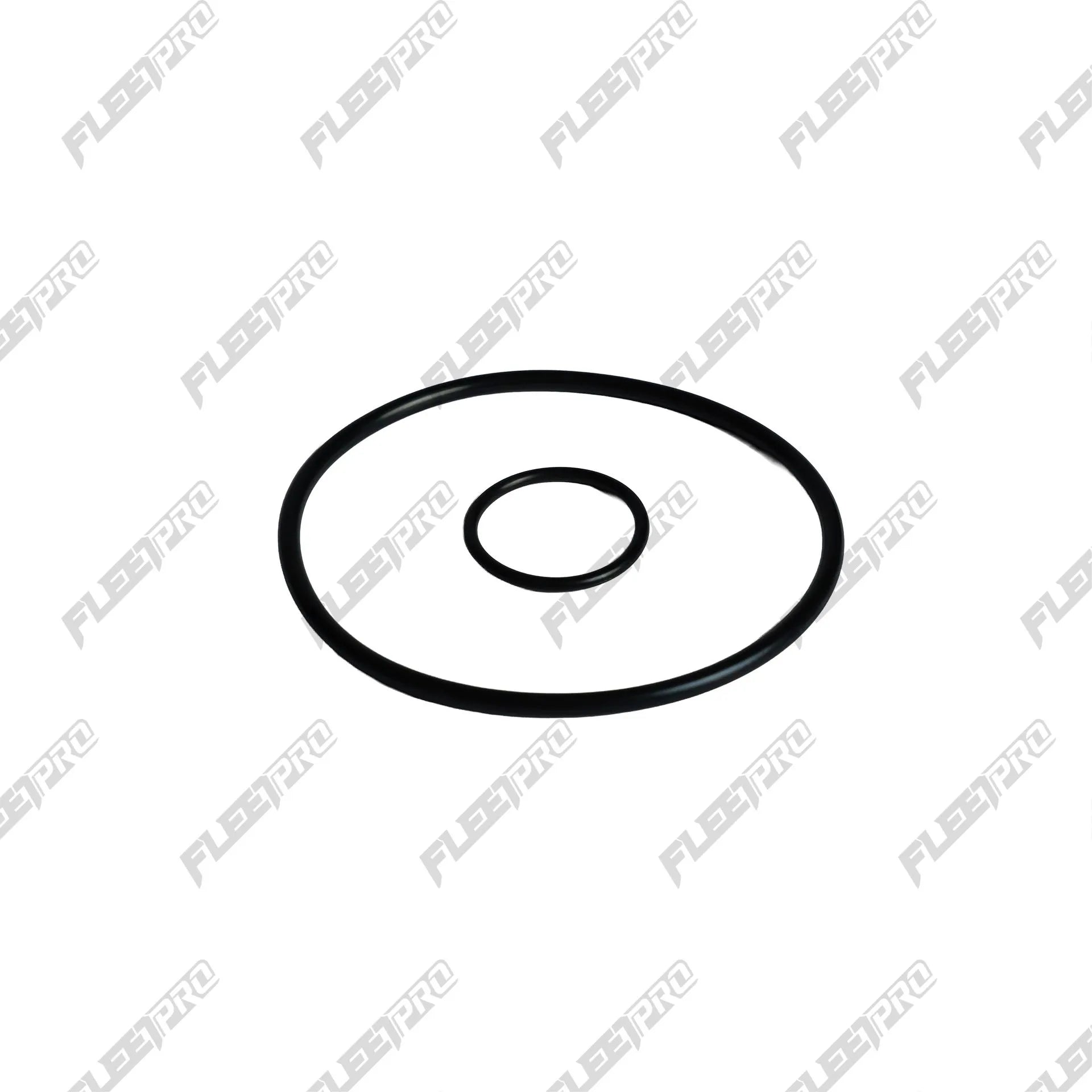

- Includes: Cartridge element with seal/gasket
- Media Type: StrataPore Coalescing Media
- Micron Rating: 25 micron (SAE J1985)
- Efficiency (TWA, SAE J1985): 98.7%
- Water Separation: 95% free water, 95% emulsified water
- Length: 7.04 in
- Largest OD: 4.21 in
- Inside Diameter (end-1): 0.66 in
- Features: Patented control valve for full media utilization; biodiesel compatible
- Product Level: OE (Original Equipment)
- Brand: Fleetguard (Distributed by FleetPro Parts & Tires)
Key features
- Strips Water Before the Injectors: Removes 95% of free water and 95% of emulsified water, which is the contamination that rusts and seizes a common-rail injector fastest.
- StrataPore Coalescing Media: StrataPore coalescing media holds 98.7% TWA efficiency at 25 micron under SAE J1985.
- Patented Control Valve: The internal control valve makes fuel use the full height of the media, so the whole element works for the whole interval.
- Correct Davco Fuel Pro Fit: Drops straight into Fuel Pro FH230 and Industrial Pro FH234 housings on 2007-2021 Volvo and Mack trucks, seal included.
- Biodiesel Compatible: Rated for biodiesel blends, so it holds up on the fuel you actually buy out on the road.
Specifications
Component Type
Cartridge Fuel/Water Separator Element (EleMax, Plus Size)
Includes
Cartridge element with seal/gasket
Media Type
StrataPore Coalescing Media
Micron Rating
25 micron (SAE J1985)
Efficiency (TWA, SAE J1985)
98.7%
Water Separation
95% free water, 95% emulsified water
Length
7.04 in
Largest OD
4.21 in
Inside Diameter (end-1)
0.66 in
Housing
Davco Fuel Pro (FH230 series) and Industrial Pro (FH234 series)
Features
Patented control valve for full media utilization; biodiesel compatible
Product Level
OE (Original Equipment)
Questions
Will this fit my truck?
This part fits Davco Fuel Pro (FH230 series) and Industrial Pro (FH234 series) housings, Volvo D11, D13 and D16; Mack MP7 and MP8 (2007-2021), Volvo VNL, VNR and VNX; Mack Pinnacle, Anthem and Granite, Primary-stage fuel/water separator element. Always confirm your year, make and model before ordering.
What part numbers does it replace?
Yes. It is a direct replacement that interchanges with Baldwin PF7930, Donaldson P550851, Donaldson P568522, WIX WF10005, Luber-Finer L9765FXL, NAPA 601005, Carquest 96005, Volvo 85120233, Volvo 21737499, Volvo 21737481, Paccar 382951PAC25, Davco 102528, Davco 102761, Davco 382136, Hengst E834KPD757.
How fast does it ship?
In-stock orders placed before 12 PM Central on business days ship the same day from our Hanover Park, IL warehouse, and typically arrive in 2 to 5 business days anywhere in the USA.
What's your return policy?
Unused items in original packaging can be returned within 30 days, backed by our 30-day money-back guarantee. If we ship the wrong part, we cover the return label and send the correct one.
