Tubeless Valve Stem 4.550in Angled High Pressure - TR573FH 5/8in Rim Hole 170.TR573FH
Regular price
$3.85
Couldn't load pickup availability
- Ships same dayOn in-stock orders
- 30-day money-backShop with confidence
- Secure checkoutEncrypted payment
We accept
Fitment
Fits these trucks
Universal - Class 8 trucks, trailers and buses22.5in and 24.5in tubeless truck and bus wheels0.625in (5/8in) large-bore valve holeOuter dual positions and deep wheel covers
Always confirm your year, make & model before ordering.
Part numbers
OEM & interchange numbers
1 cross-refIndustry Reference TR573FH
Direct 1-to-1 replacement for every number above. Tap any number to copy.
Overview
Put an end to the slow leak at the valve with this TR573FH large-bore clamp-in tubeless valve stem distributed by FleetPro Parts & Tires. It is the TR573 family stem in the high-pressure FH configuration, and it threads and clamps into a 0.625in (5/8in) rim valve hole. A cracked grommet, a stem damaged at the bend or a valve that weeps overnight leaves a tire running low, and low pressure is what scrubs the tread off, cooks the casing and turns a routine day into a roadside call. Manufactured by Automann to Fleet Standard specifications, we stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, tire shops, and owner-operators nationwide.
Large Bore, Long Reach: The TR573FH Angled Stem Advantage
The 4.550in effective length and the angled, double-bend body are what make this stem worth having: the bent stem routes the valve out to a serviceable angle on outer duals and behind tight wheel covers, so it can be checked and inflated without bending the hardware to get a chuck on it. That is the difference between a pressure check that happens every trip and one that quietly gets skipped.
Inside, a high-temperature nickel-plated brass core handles the heat that comes off a working brake and wheel end, an EPDM rubber grommet seals the large rim hole, and the brass body resists the salt and moisture that eat cheaper hardware. At FleetPro Parts & Tires, we know the tire bay does not have time to do the same wheel twice. This is the standard shop replacement for damaged or leaking large-bore valves, listed against the industry reference TR573FH.
Vehicle Fitment & Compatibility
This universal-application truck valve is intended for the following commercial use:
- Make/Model: Universal - Class 8 trucks, trailers and buses
- Wheel: 22.5in and 24.5in tubeless truck and bus wheels
- Valve Hole: 0.625in (5/8in) large-bore rim hole
- Position: Outer dual positions and deep wheel covers where a straight stem is hard to reach
- Component Group: Air Brake & Wheel / Wheel End (Seals & Bearings)
Direct Replacement & Cross-Reference Numbers:
This Automann valve stem is listed and ordered under the following part numbers:
- Industry Reference: TR573FH
- Automann Distributor #: 170.TR573FH
Technical Specifications
- Component Type: Clamp-In Tubeless Truck Valve, TR573 Family
- Rim Hole (Bore): 0.625in (5/8in)

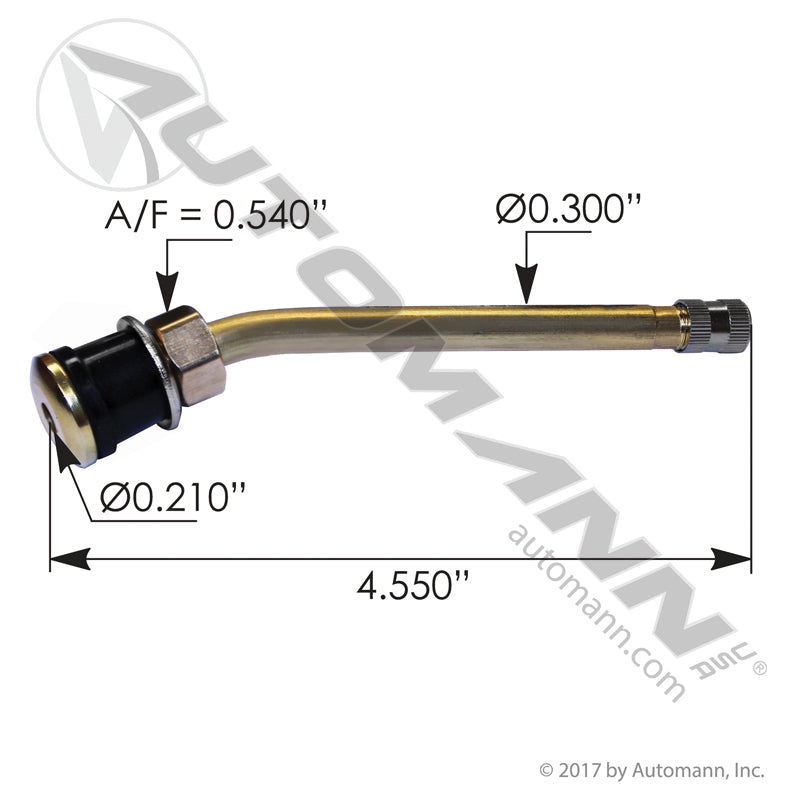

- Effective Length: 4.550in
- Configuration: Angled, double-bend (high pressure)
- Core: High-temperature nickel-plated brass
- Grommet: EPDM rubber seal
- Body Material: Brass
- Weight: 0.2 lbs
- UPC: 889626390319
- Product Level: Fleet Standard Aftermarket
- Brand: Automann (Distributed by FleetPro Parts & Tires)
Key features
- Double-Bend Angled Body: Routes the valve to a serviceable angle on outer duals and behind deep wheel covers, so inflation does not mean bending hardware.
- 4.550in Reach: Long enough to clear a wheel cover and still present the valve where a gauge and chuck can get a square seat.
- Large 5/8in Bore Fitment: Clamps into the 0.625in rim valve hole used on tubeless truck and bus wheels.
- High-Temperature Brass Core: A nickel-plated brass core handles the heat coming off a working brake and wheel end instead of relaxing under it.
- EPDM Grommet Seal: A weather-resistant rubber grommet seals the large rim hole against the salt and moisture that kill cheaper valves.
Specifications
Component Type
Clamp-In Tubeless Truck Valve, TR573 Family
Rim Hole (Bore)
0.625in (5/8in)
Effective Length
4.550in
Configuration
Angled, double-bend (high pressure)
Core
High-temperature nickel-plated brass
Grommet
EPDM rubber seal
Body Material
Brass
Weight
0.2 lbs
UPC
889626390319
Product Level
Fleet Standard Aftermarket
Questions
Will this fit my truck?
This part fits Universal - Class 8 trucks, trailers and buses, 22.5in and 24.5in tubeless truck and bus wheels, 0.625in (5/8in) large-bore valve hole, Outer dual positions and deep wheel covers. Always confirm your year, make and model before ordering.
What part numbers does it replace?
Yes. It is a direct replacement that interchanges with Industry Reference TR573FH.
How fast does it ship?
In-stock orders placed before 12 PM Central on business days ship the same day from our Hanover Park, IL warehouse, and typically arrive in 2 to 5 business days anywhere in the USA.
What's your return policy?
Unused items in original packaging can be returned within 30 days, backed by our 30-day money-back guarantee. If we ship the wrong part, we cover the return label and send the correct one.
